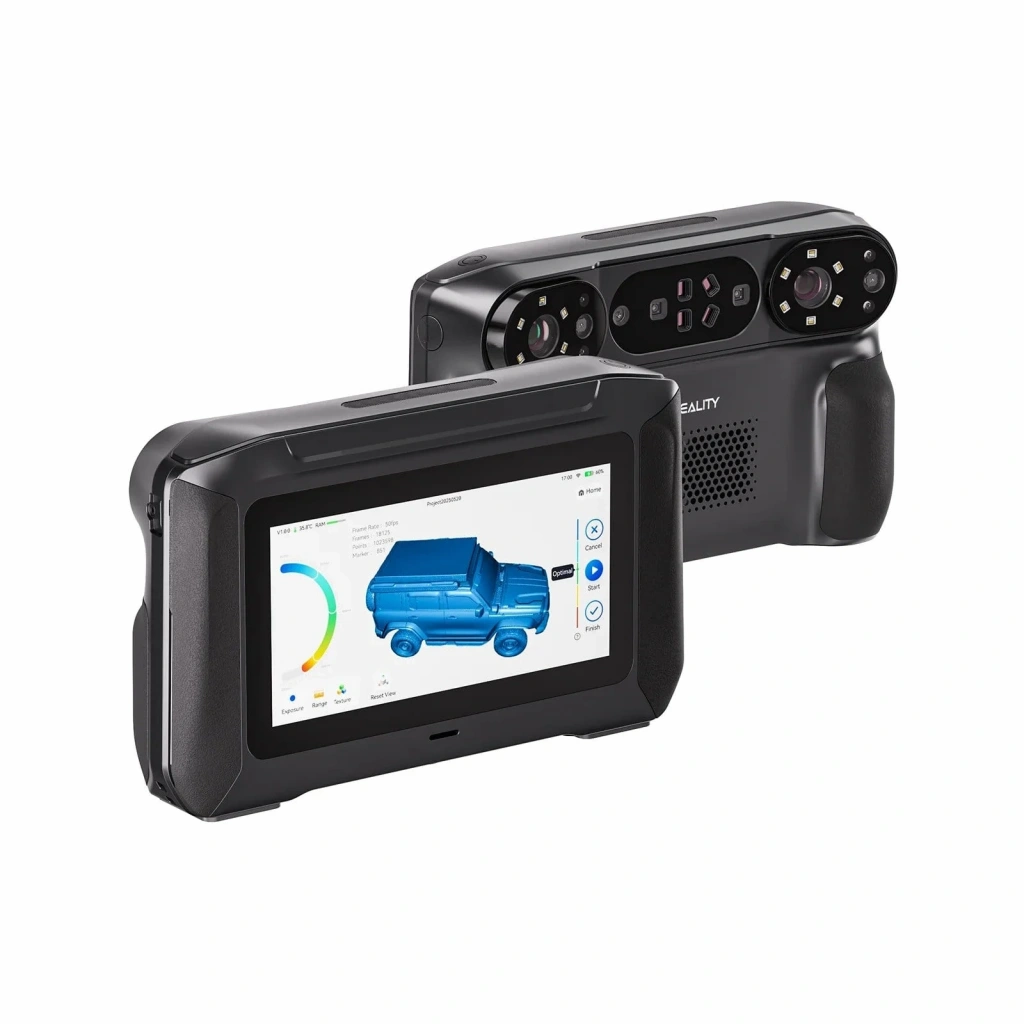

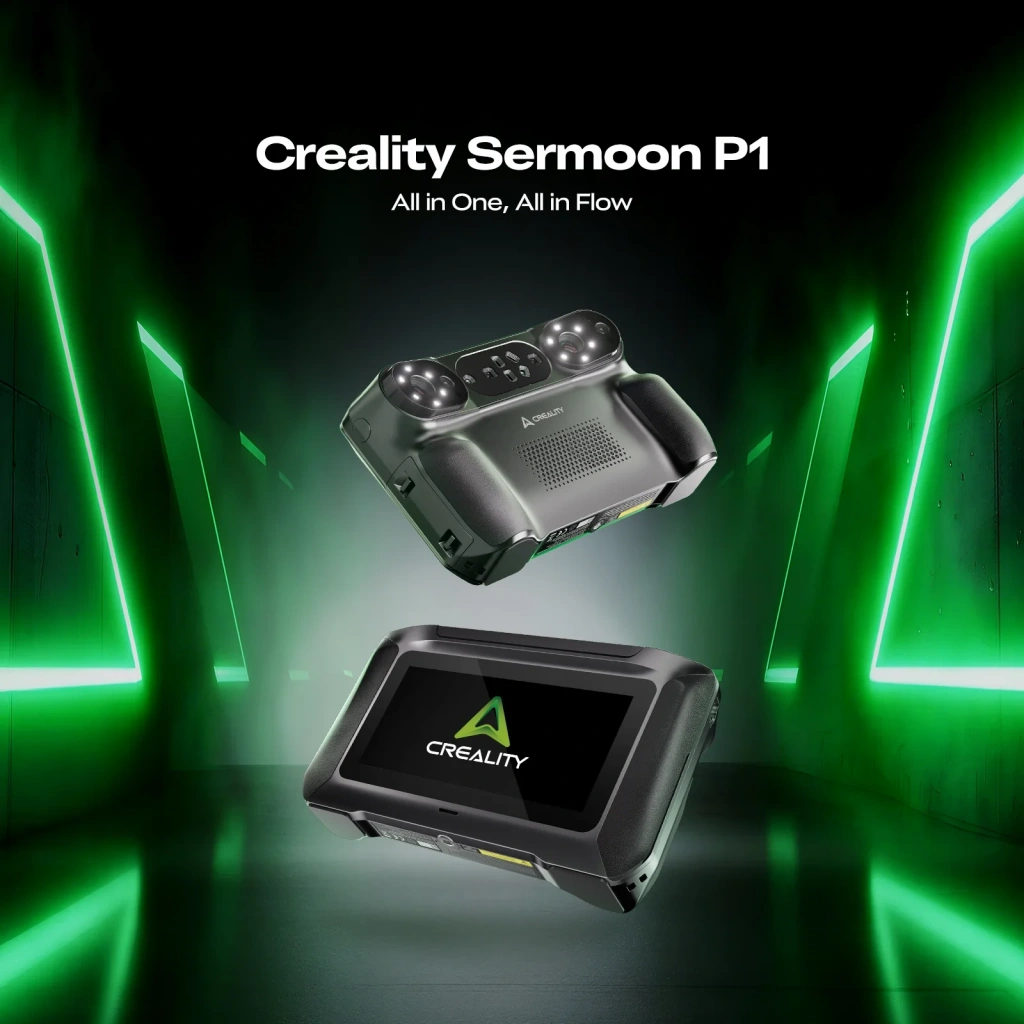

Creality Sermoon P1 3D Tarayıcı

Profesyonel, Kablosuz ve Hepsi Bir Arada 3D Tarama Çözümü

Creality Sermoon P1, bilgisayara ihtiyaç duymadan çalışabilen, tamamen bağımsız (standalone) bir profesyonel 3D tarayıcıdır. Gelişmiş mavi lazer + NIR (kızılötesi) hibrit tarama sistemi sayesinde hem küçük hem büyük objeleri yüksek hassasiyetle dijital ortama aktarır.

Üzerindeki güçlü donanım sayesinde tarama, işleme ve model oluşturma işlemlerinin tamamını tek cihaz üzerinden gerçekleştirebilirsiniz. Taşınabilir yapısı ve çift bataryalı sistemi ile sahada kullanım için idealdir.

---

Öne Çıkan Özellikler

• ? Bilgisayarsız kullanım (Standalone Mode)
• ? 22 + 7 + 1 lazer çizgisi ile ultra hızlı ve detaylı tarama
• ? NIR (Infrared) ile markersız tarama
• ? 0.02 mm seviyesine kadar yüksek hassasiyet
• ? 5 mm’den 4 metreye kadar geniş tarama aralığı
• ? 6 inç HD dokunmatik ekran
• ? 24 GB RAM + 256 GB depolama
• ? Wi-Fi 7 ile hızlı veri aktarımı
• ? Çift değiştirilebilir batarya ile kesintisiz kullanım

---

Teknik Özellikler

Özellik	Değer
Tarama Teknolojisi	Mavi lazer + NIR yapılandırılmış ışık
Lazer Modları	22 çizgi / 7 çizgi / 1 çizgi
Hassasiyet	0.02 mm (volumetrik: 0.06 mm/m)
Tarama Aralığı	5 × 5 × 5 mm – 4000 × 4000 × 4000 mm
Ekran	6” Full HD dokunmatik
RAM	24 GB LPDDR5X
Depolama	256 GB UFS
İşlemci	Qualcomm tabanlı CPU/GPU/FPGA
Bağlantı	Wi-Fi 7 / USB
Batarya	2 x 3300 mAh (değiştirilebilir)
Çalışma Modları	Standalone / PC bağlantılı / Kablosuz
Kamera	RGB renkli kamera (texture destekli)

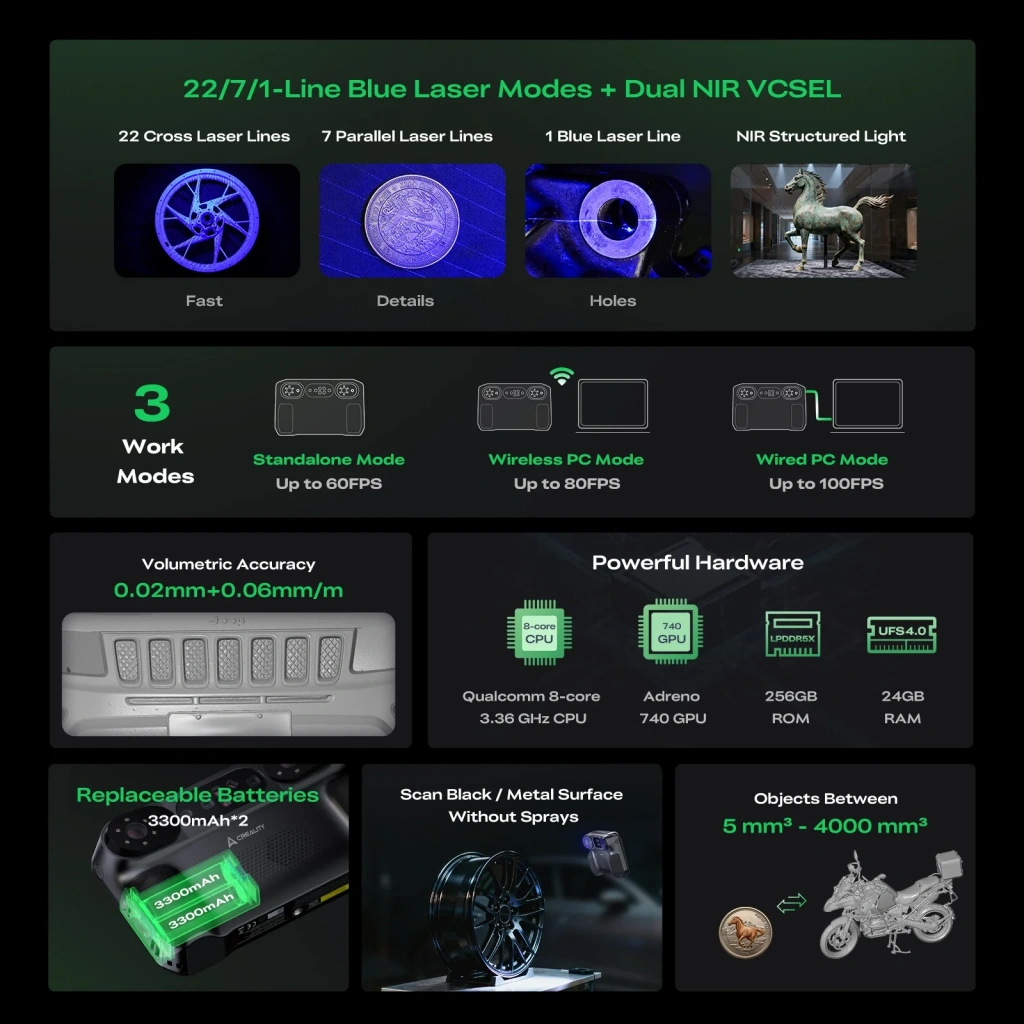

FastDetailsHoles
3Work
Modes

Standalone ModeUp to 60FPS
Wireless PC ModeUp to 80FPS
Wired PC ModeUp to 100FPS
Volumetric Accuracy0.02mm+0.06mm/m

Powerful Hardware

Qualcomm 8-core3.36 GHz CPU
Adreno740 GPU
24GBRAM
256GBROM
Replaceable Batteries3300mAh*2

Scan Black / Metal SurfaceWithout Sprays

Objects Between5 mm³ - 4000 mm³

Scan. Process. Export - All in one Device.An all-in-one 3D scanning workflow in a single device.
With advanced laser & structured light systems and powerful onboard computing,
Sermoon P1 enables high-precision scanning and processing—no PC required.

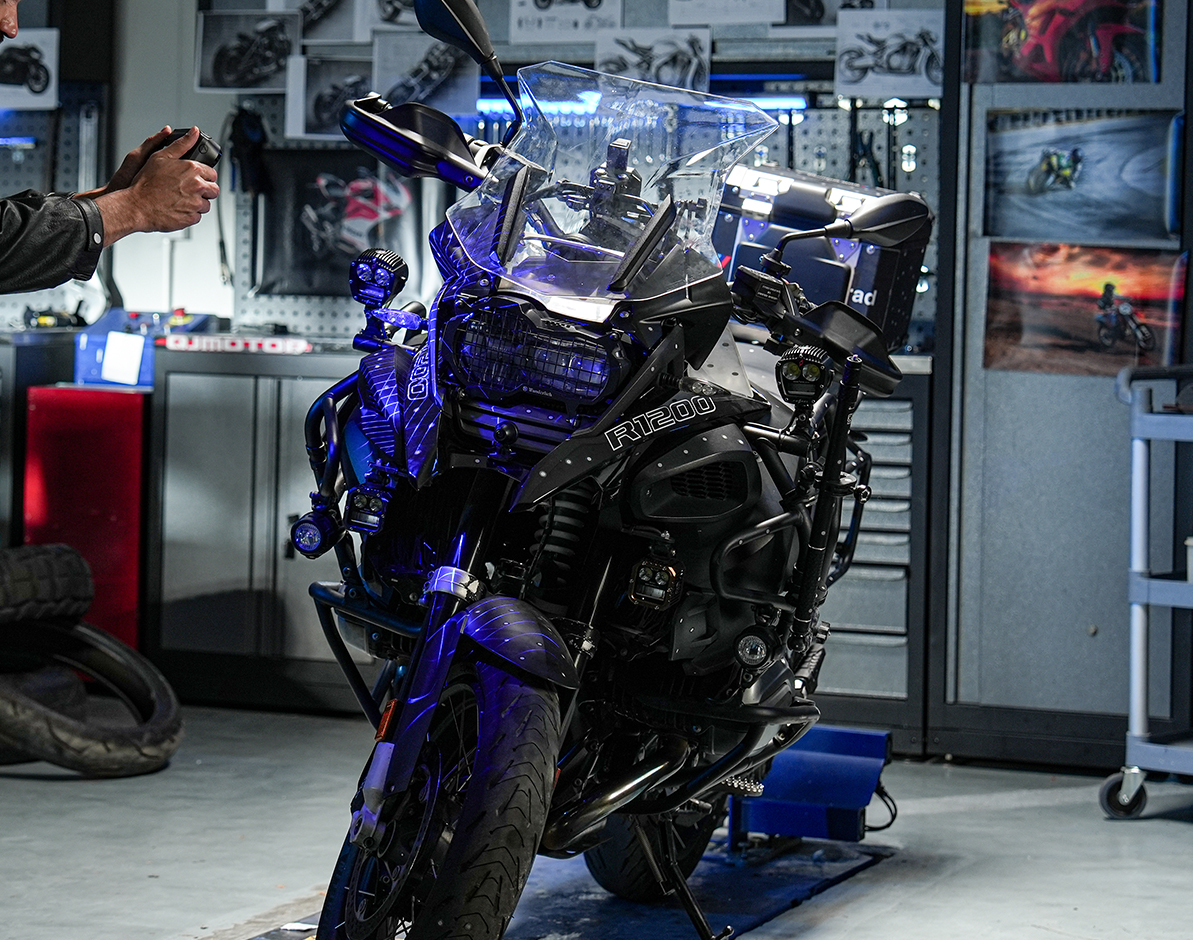

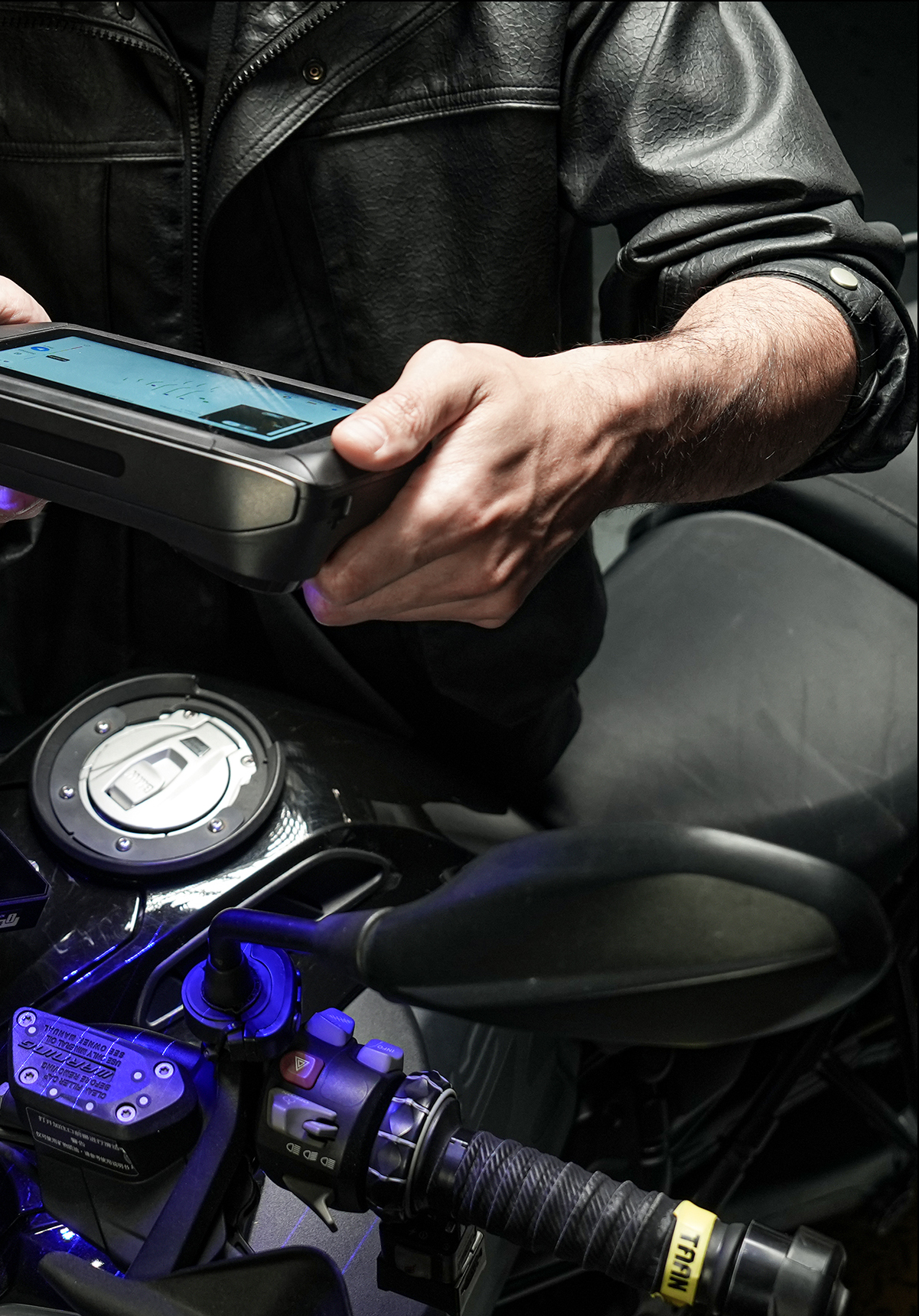

Scan Anywhere. No Limits.Built for tight, hard-to-reach spaces, Sermoon P1 enables flexible,
cable-free scanning where traditional setups fall short.
Capture high-quality data on-site—fast, efficient, and without constraints.

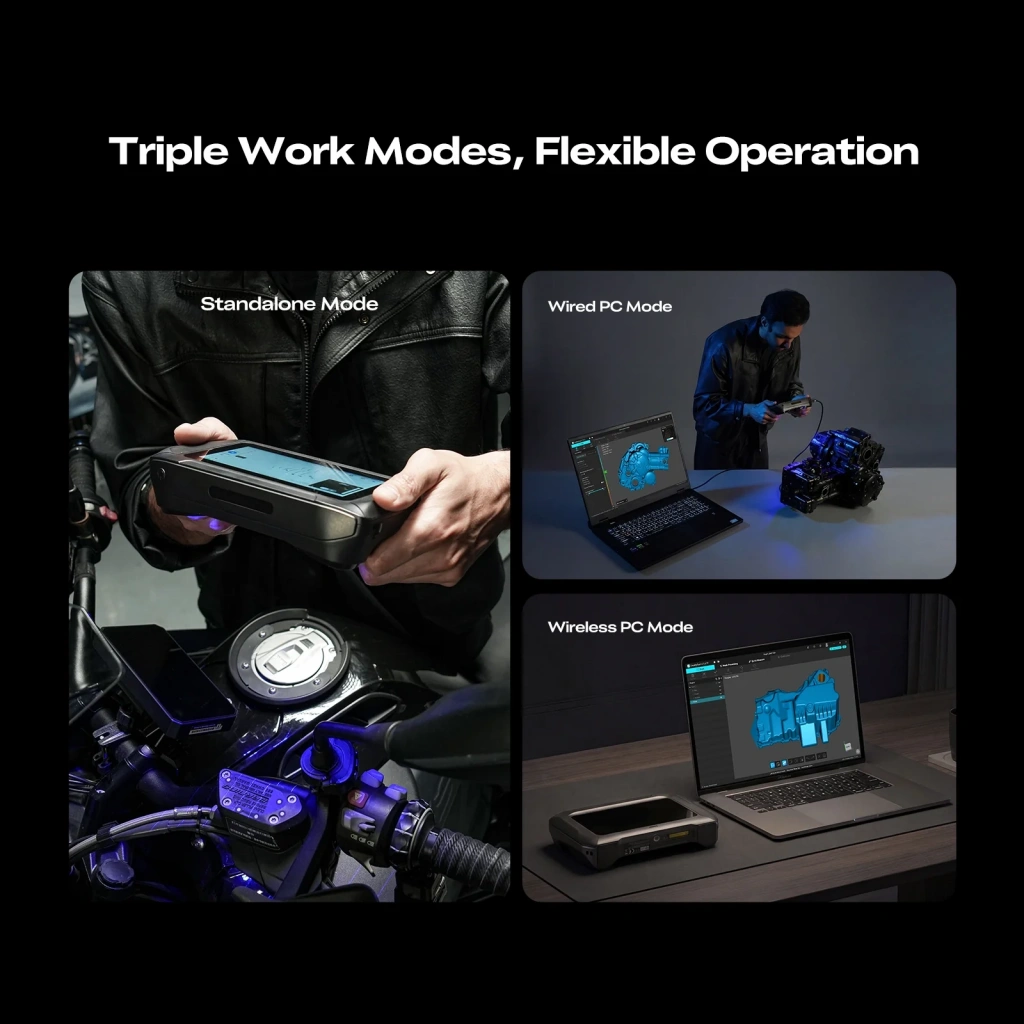

Triple Work Modes, Flexible Operation
Switch seamlessly between Standalone, Wired PC, and Wireless PC modes —— adapt easily to any scanning environment or workflow.

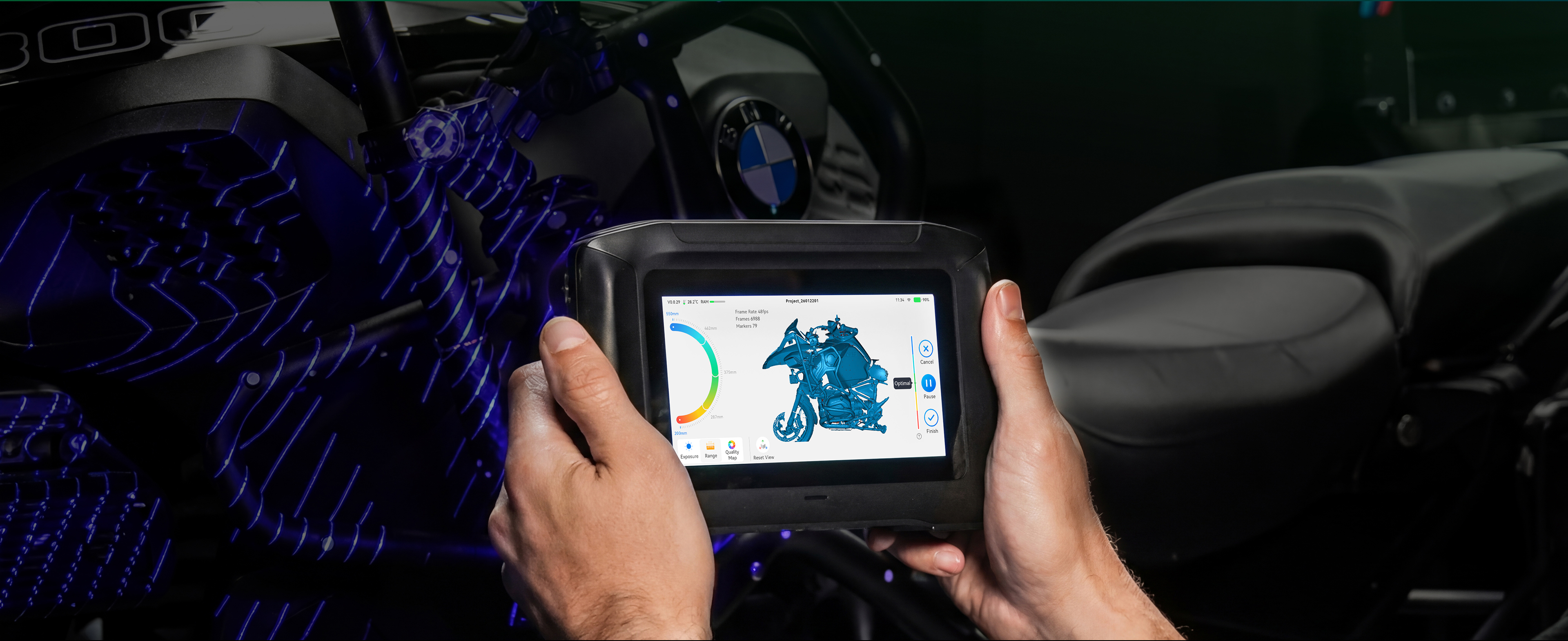

Standalone Mode

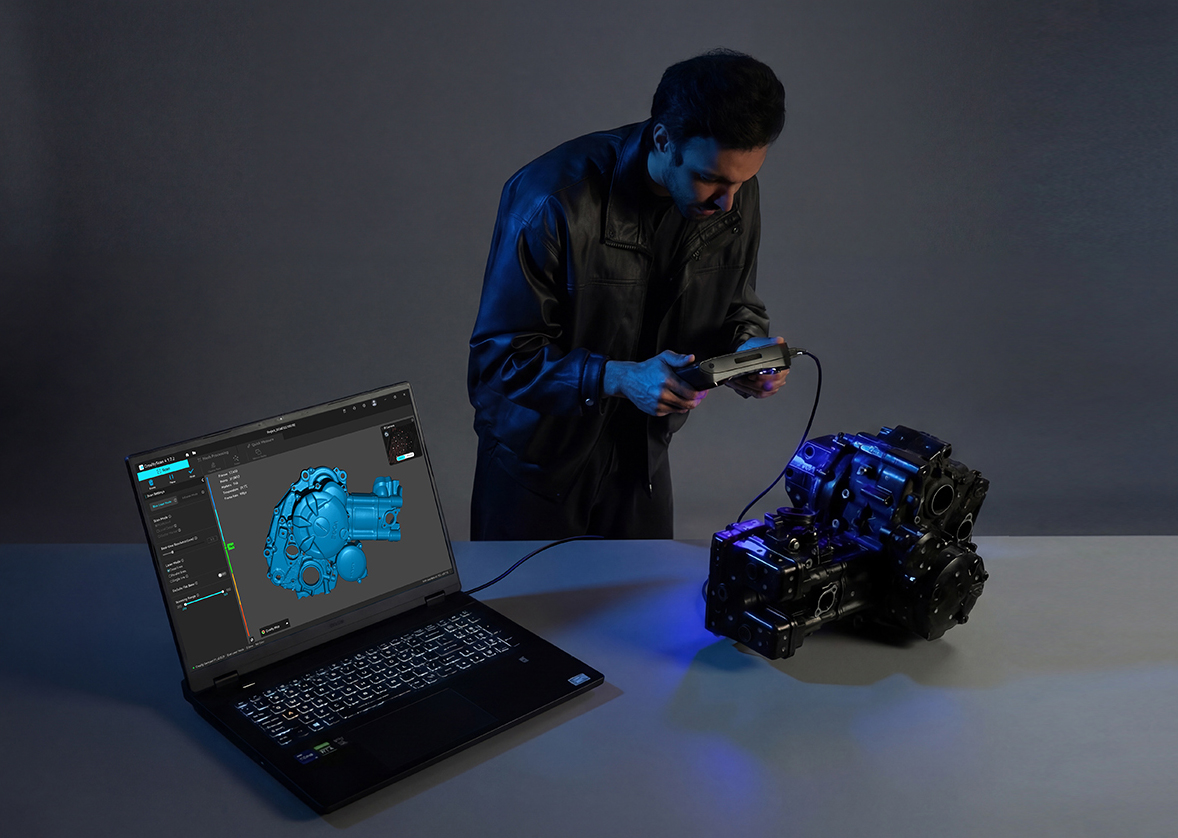

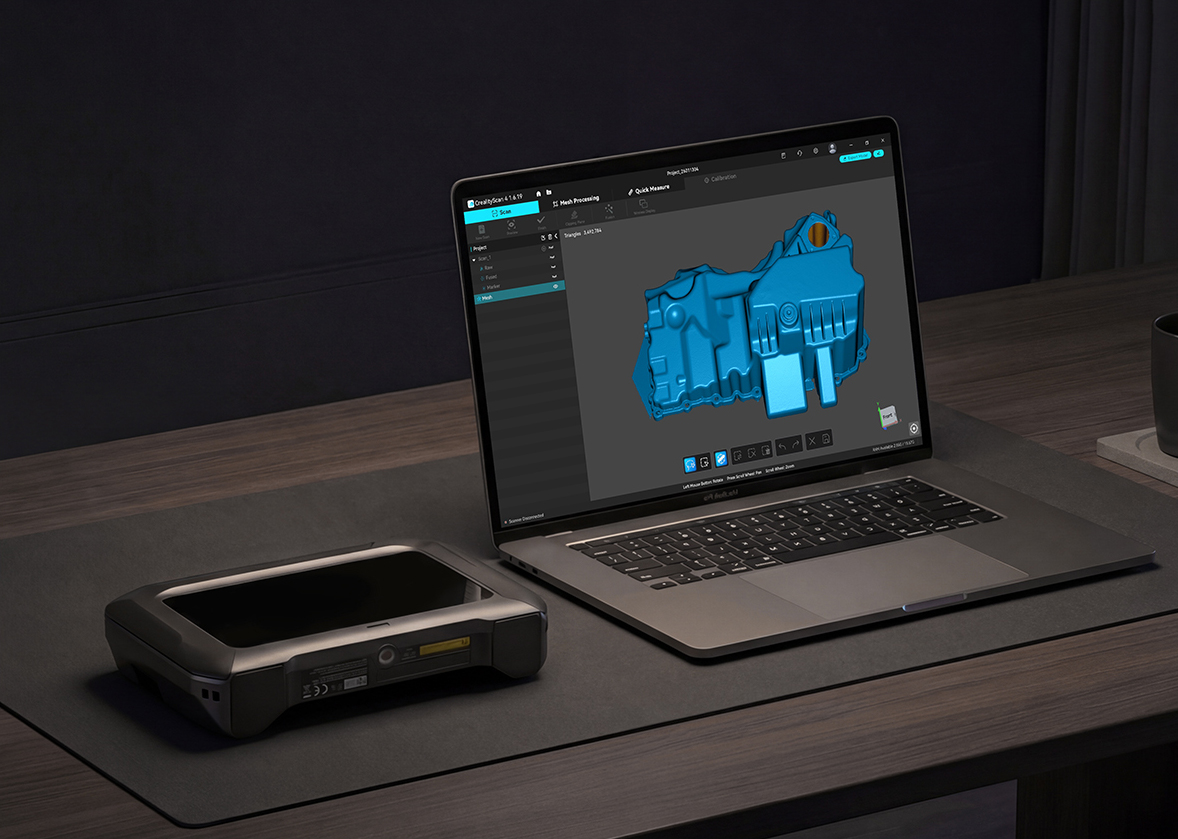

Wired PC Mode

Wireless PC Mode

0.02 mm + 0.06 mm/m,
Reliable Consistent AccuracyDesigned for repeatable, reliable results in professional workflows such as reverse
engineering and automotive customization.

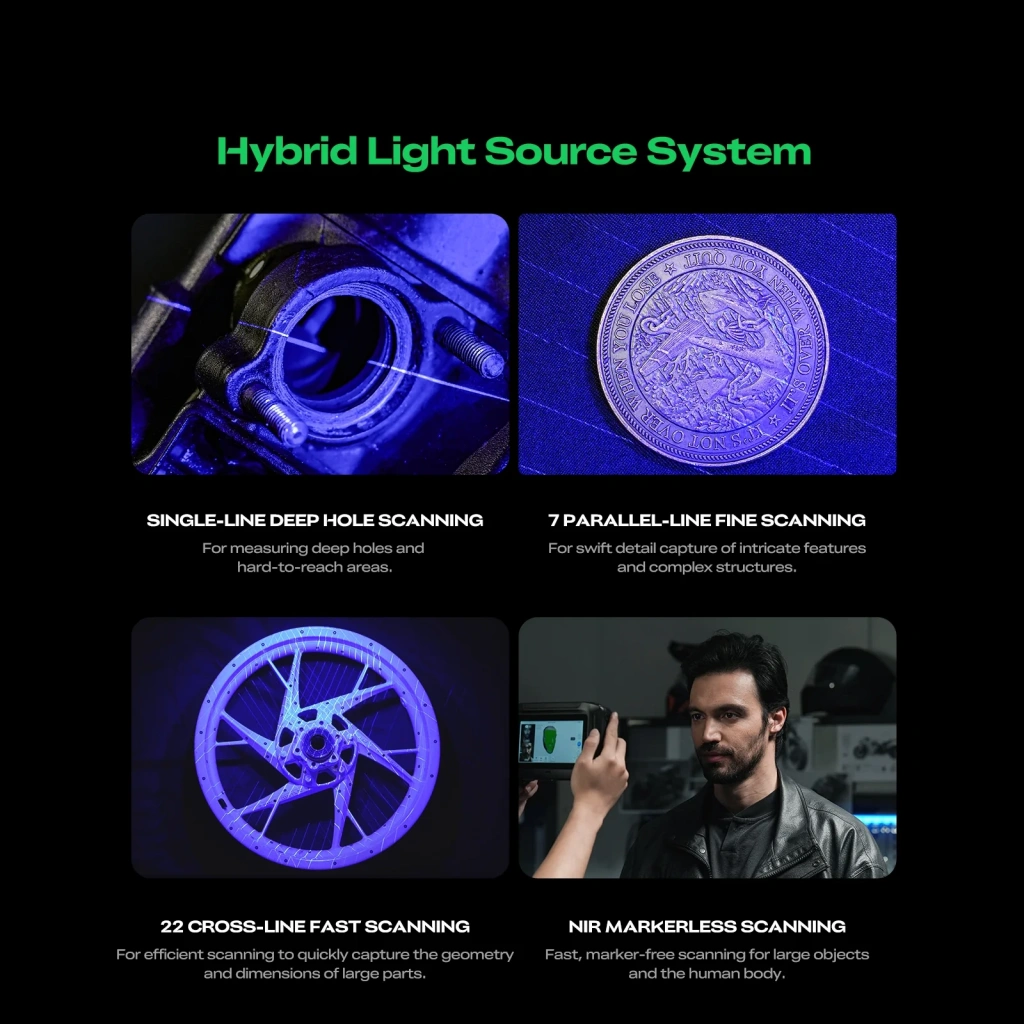

Hybrid Light Source SystemFeaturing 22 + 7 + 1 blue laser lines + NIR structured light*Sermoon P1 adapts to different surfaces and materials,
Markerless Scanning — Coming in May.

SINGLE-LINE
DEEP HOLE SCANNING
7 PARALLEL-LINE
FINE SCANNING

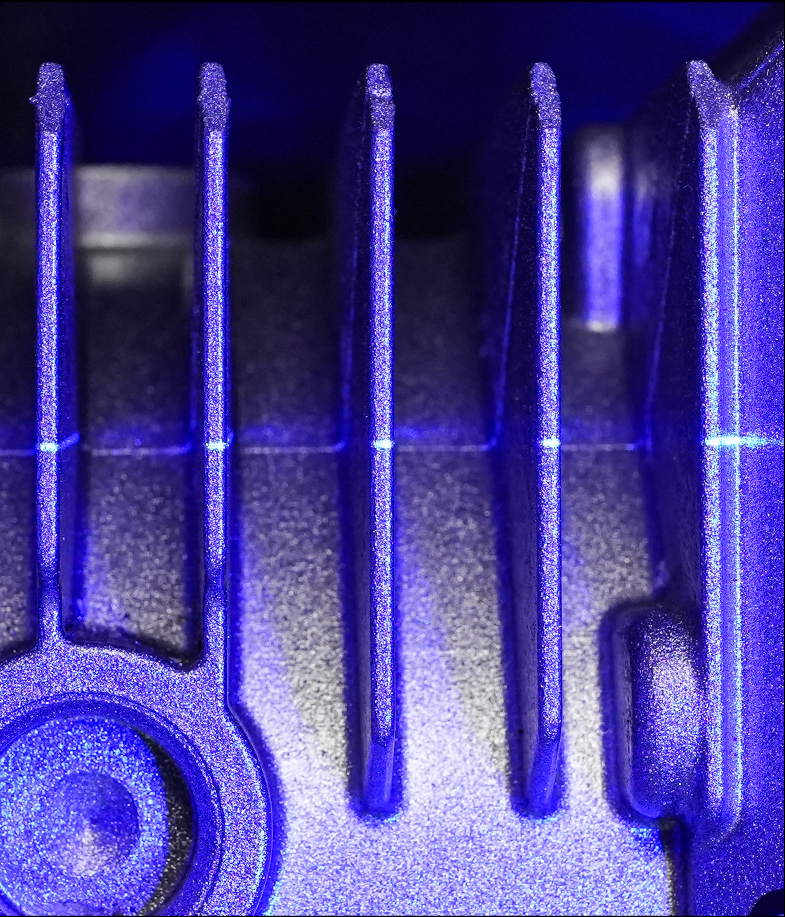

22 CROSS-LINE
FAST SCANNING
NIR MARKERLESS
SCANNING
For measuring deep holes and hard-to-reach areas.

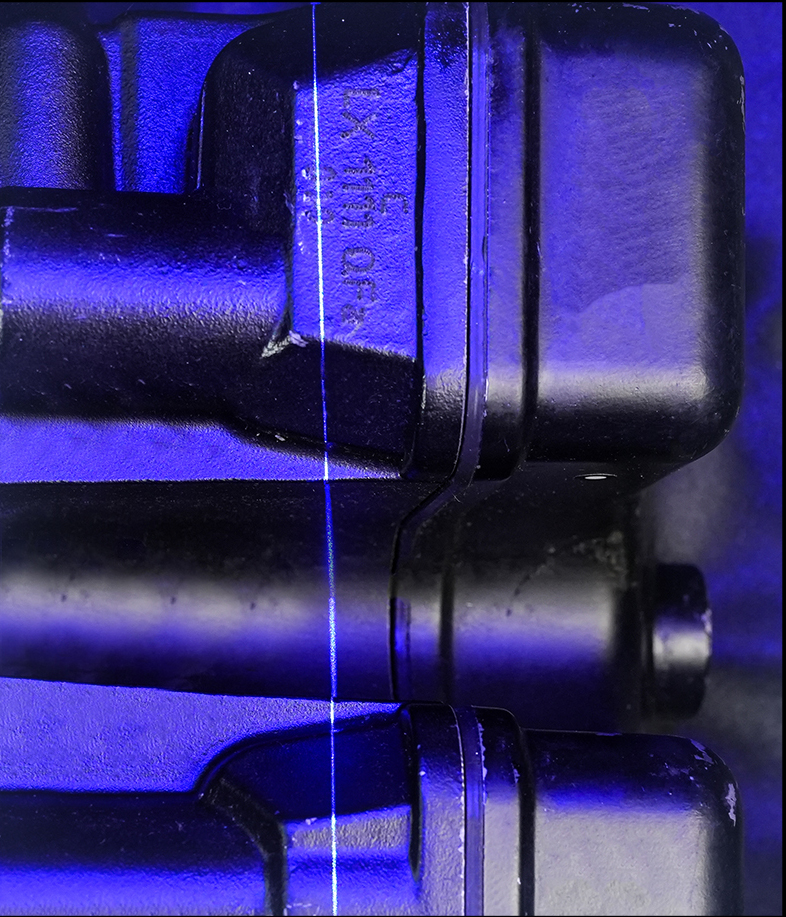

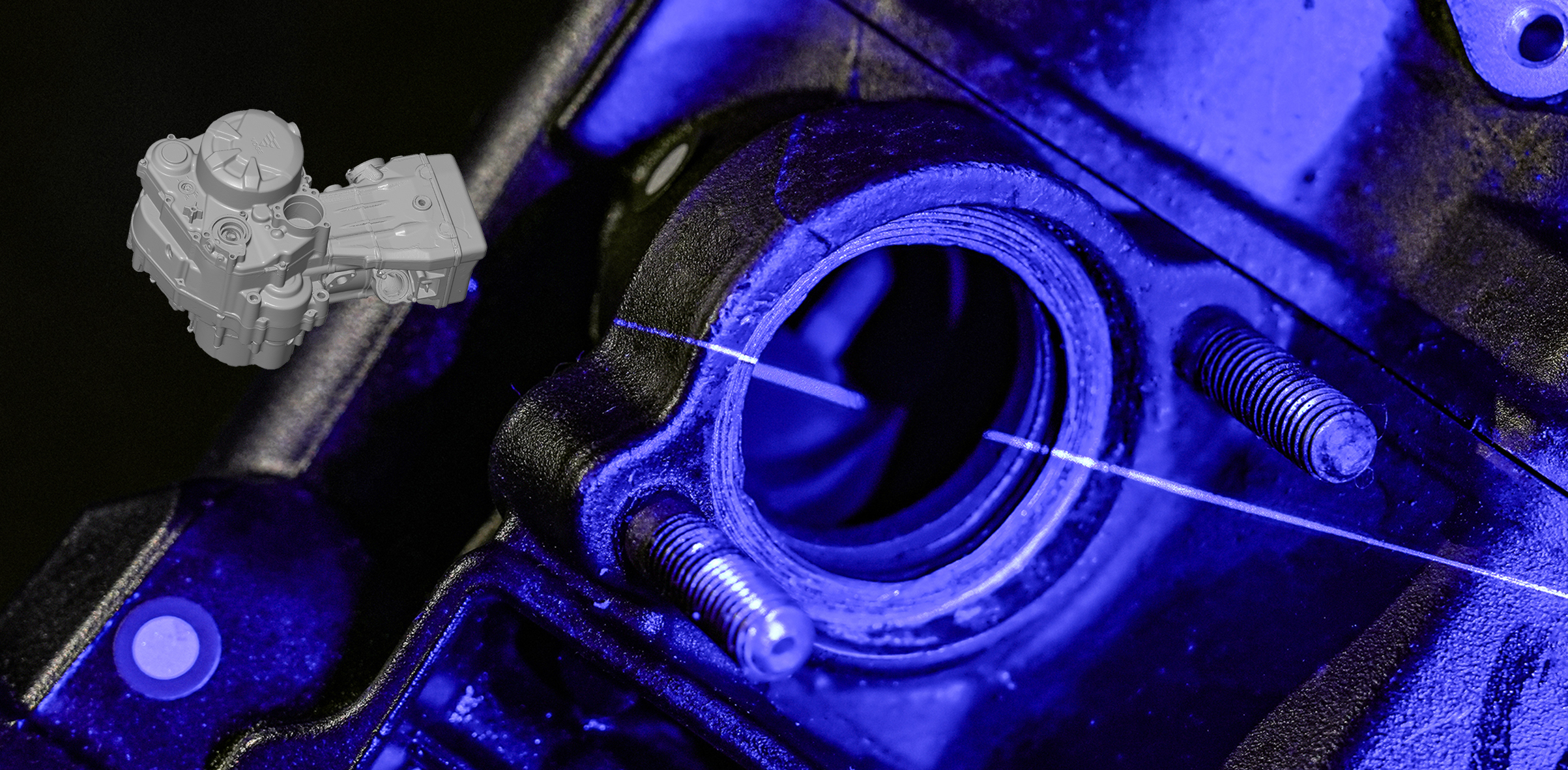

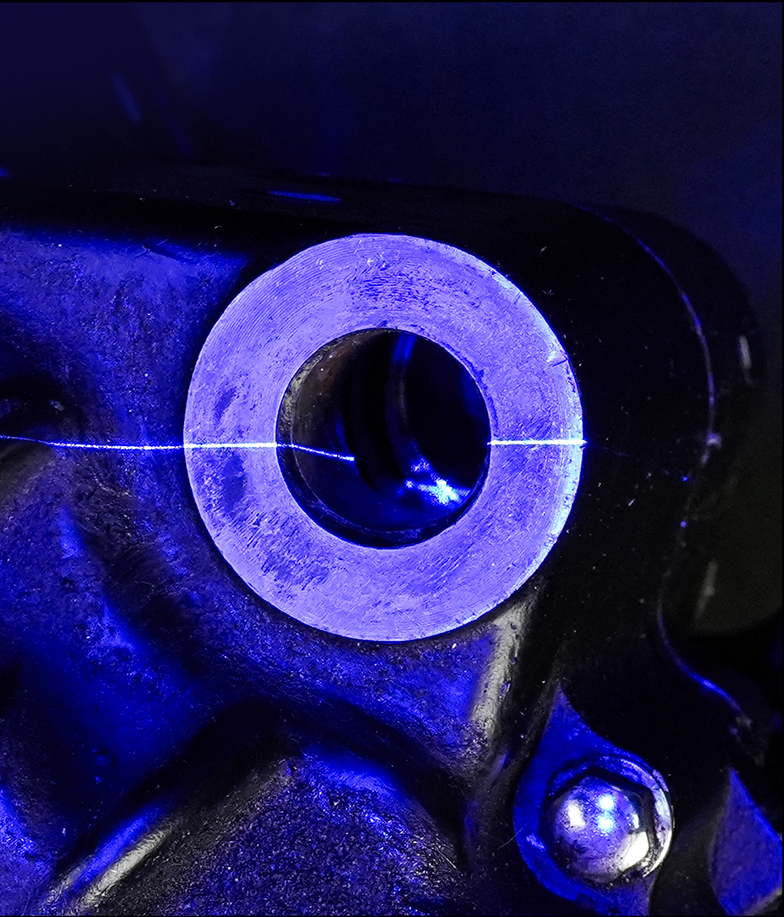

Single-Line Laser, Mastering Deep Holes
(Up to depth-to-diameter ratio 6:1)The P1 single-line laser deep-hole scanning mode captures accurate 3D data from hard-to-reach areas such as deep
holes, narrow gaps, and recesses. It supports scanning narrow holes with a depth-to-diameter ratio of up to 6:1,
delivering more complete 3D data for design, inspection, analysis, and beyond.*Test based on a 28.68 mm diameter pipe, with a measured depth of 172.2 mm

Deep Holes

Narrow Gaps

Recessed Areas

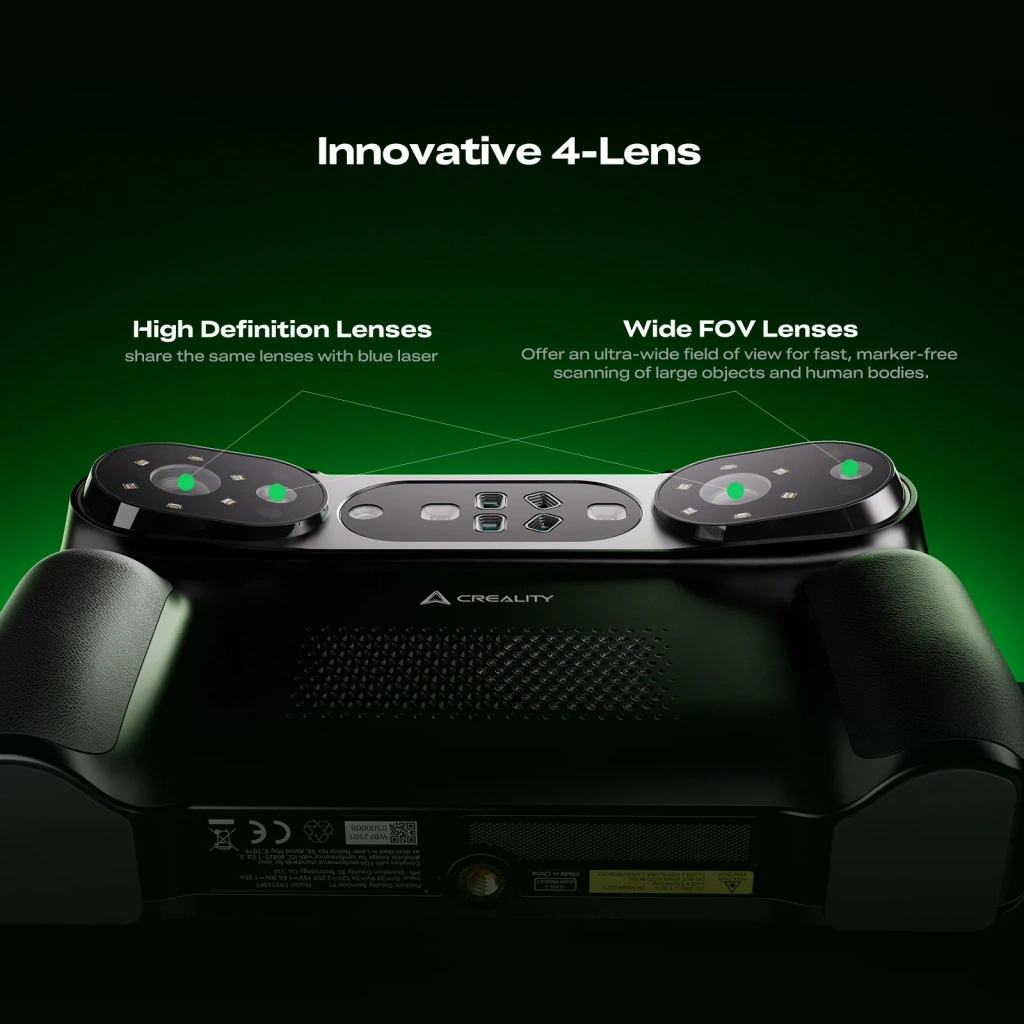

Innovative 4-Lens
High Definition Lenses:share the same lenses with blue laser
High Definition Lenses:Provide high accuracy scanning
Wide FOV LensesOffer an ultra-wide field of view for fast, marker-free
scanning of large objects and human bodies.
Wide FOV LensesOffer an ultra-wide field of view for fast, marker-free
scanning of large objects and human bodies.

Fast Scanning,
Smooth CaptureHigh-speed data acquisition ensures smooth,accurate
real-time reconstruction — even during complex scans.
Blue Laser Mode:up to60 FPS (Standalone) / 100 FPS (PC)
Infrared Mode:up to18 FPS (Standalone) / 30 FPS (PC)

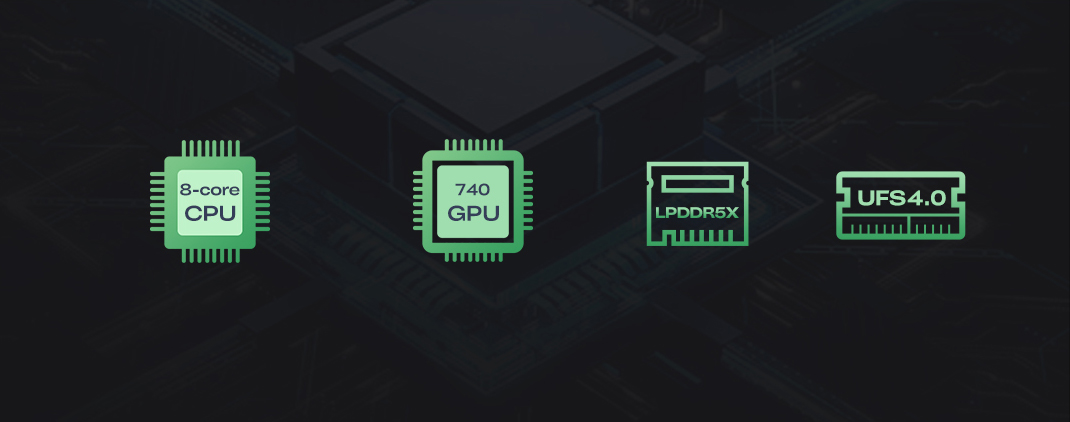

High-performance Qualcomm ProcessorPowered by a Qualcomm high-performance processor with CPU/GPU/FPGA acceleration for fast, real-time scanning and data processing.

CPU | 8-Core 3.36 GHzCreality 100%Others 50%
GPU | Adreno 740Creality 100%Others 30%

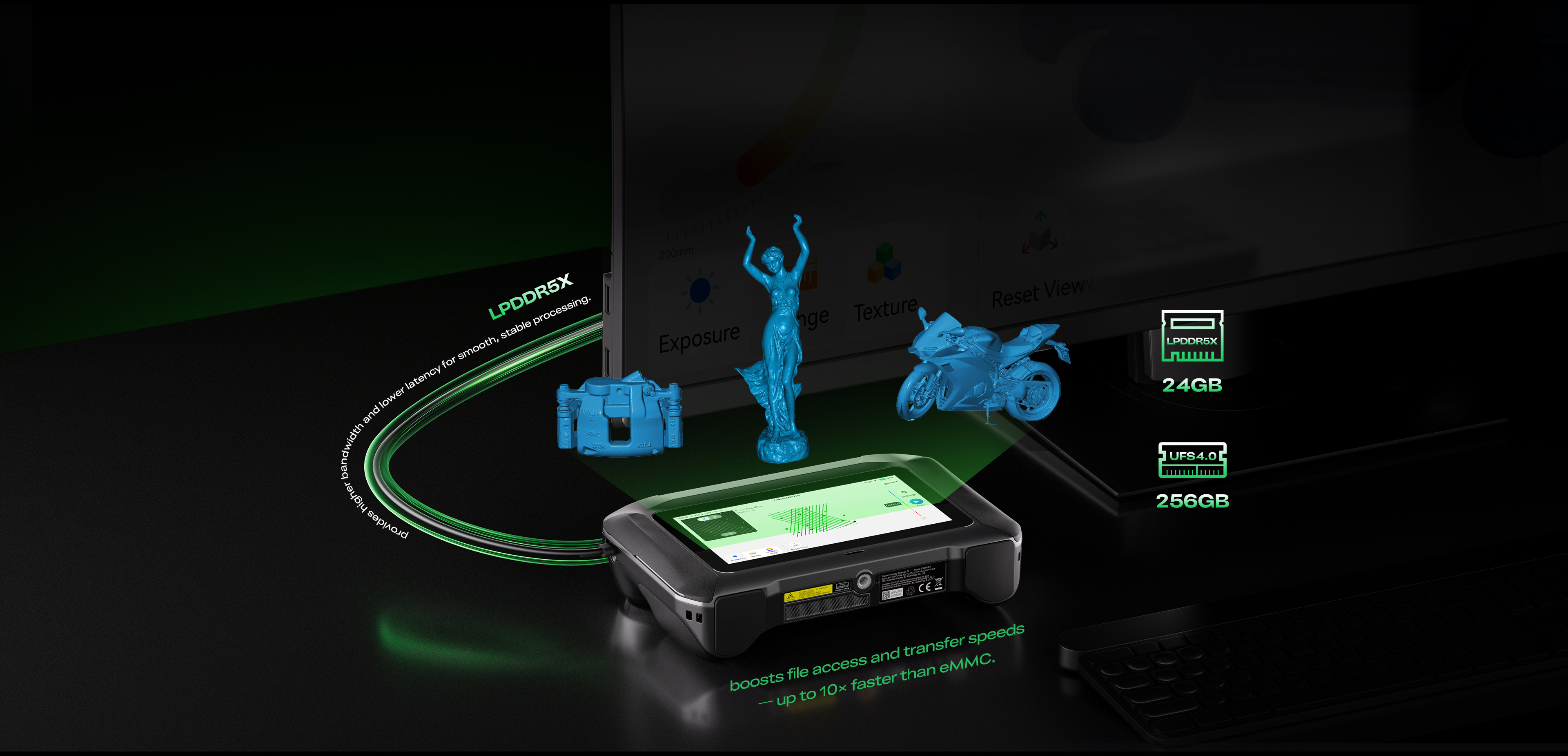

Ultra-Fast Memory & Storage24GB LPDDR5X RAM and 256GB UFS 4.0 ROM

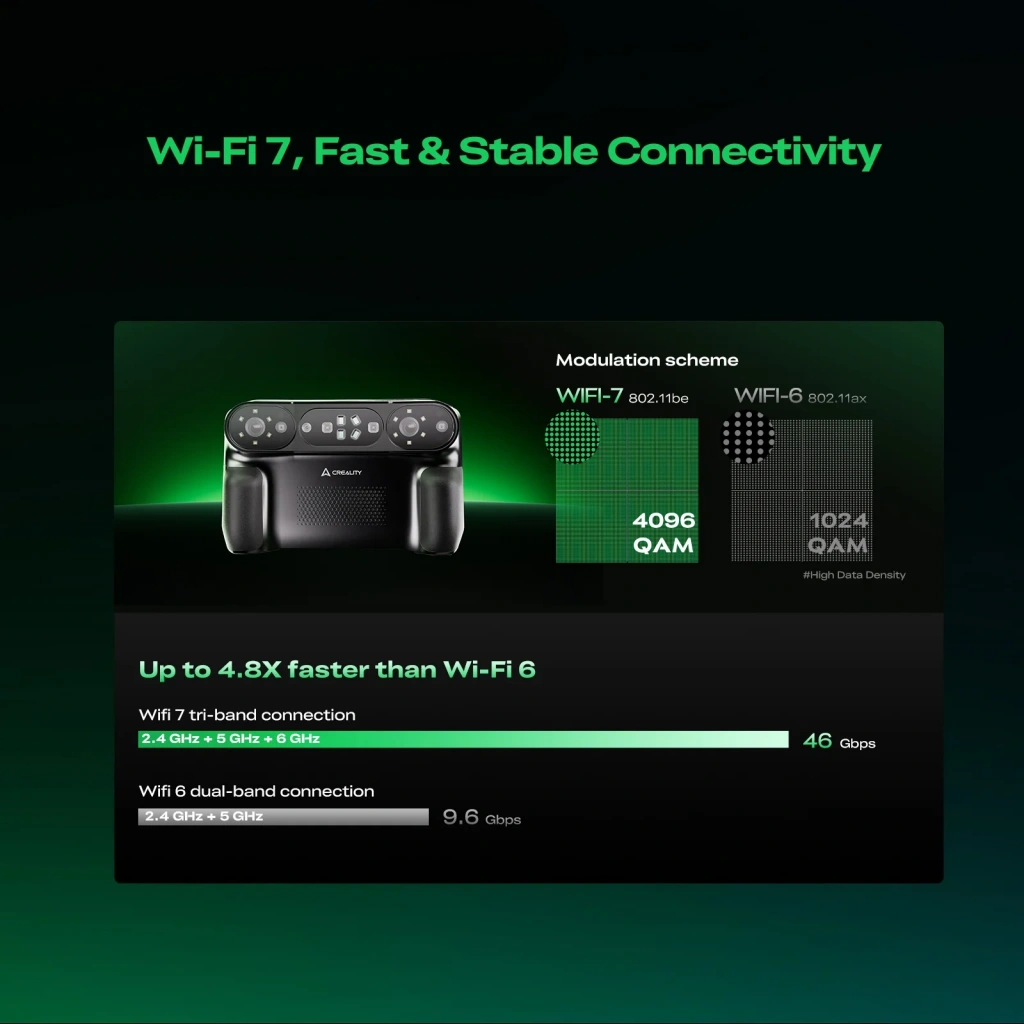

Wi-Fi 7, Fast & Stable ConnectivityBuilt-in Wi-Fi 7 and advanced lossless compression algorithms ensure faster, safer, and more reliable data transfer.
Modulation scheme
WIFI-7802.11be
WIFI-6802.11ax
4096QAM
1024QAM
#High Data Density

Up to 4.8X faster than Wi-Fi 6
Wifi 7 tri-band connection
46Gbps
Wifi 6 dual-band connection
9.6Gbps

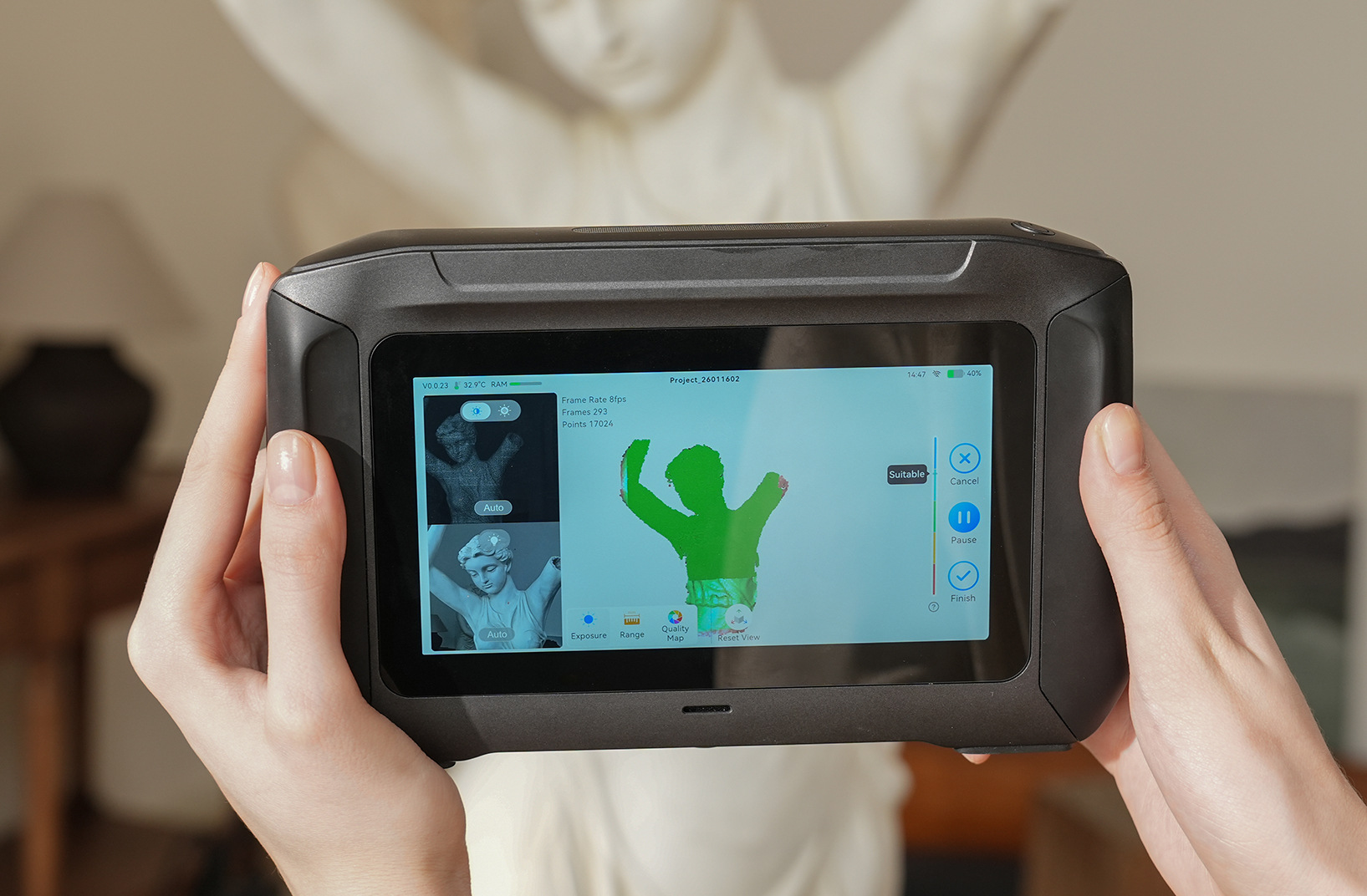

6-Inch HD Touchscreen — Clear & Intuitive
A 6-inch Full HD display with crisp visuals and an 160° wide viewing angle, ensuring clear visibility even outdoors.
Scan, process, and preview—all on a single device.

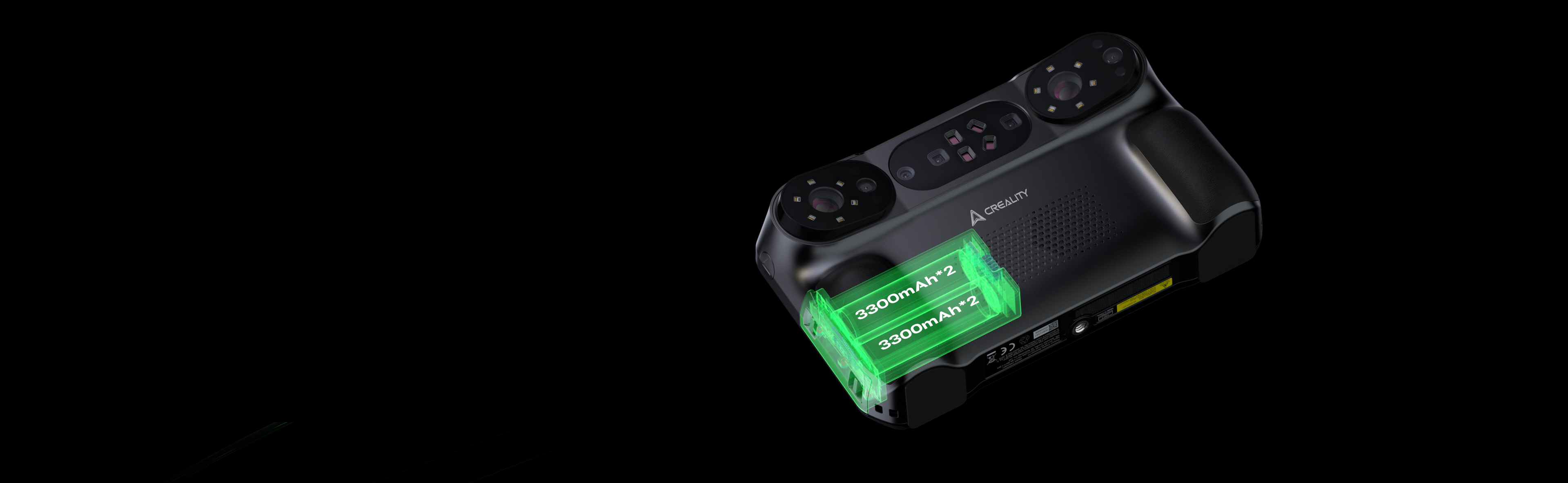

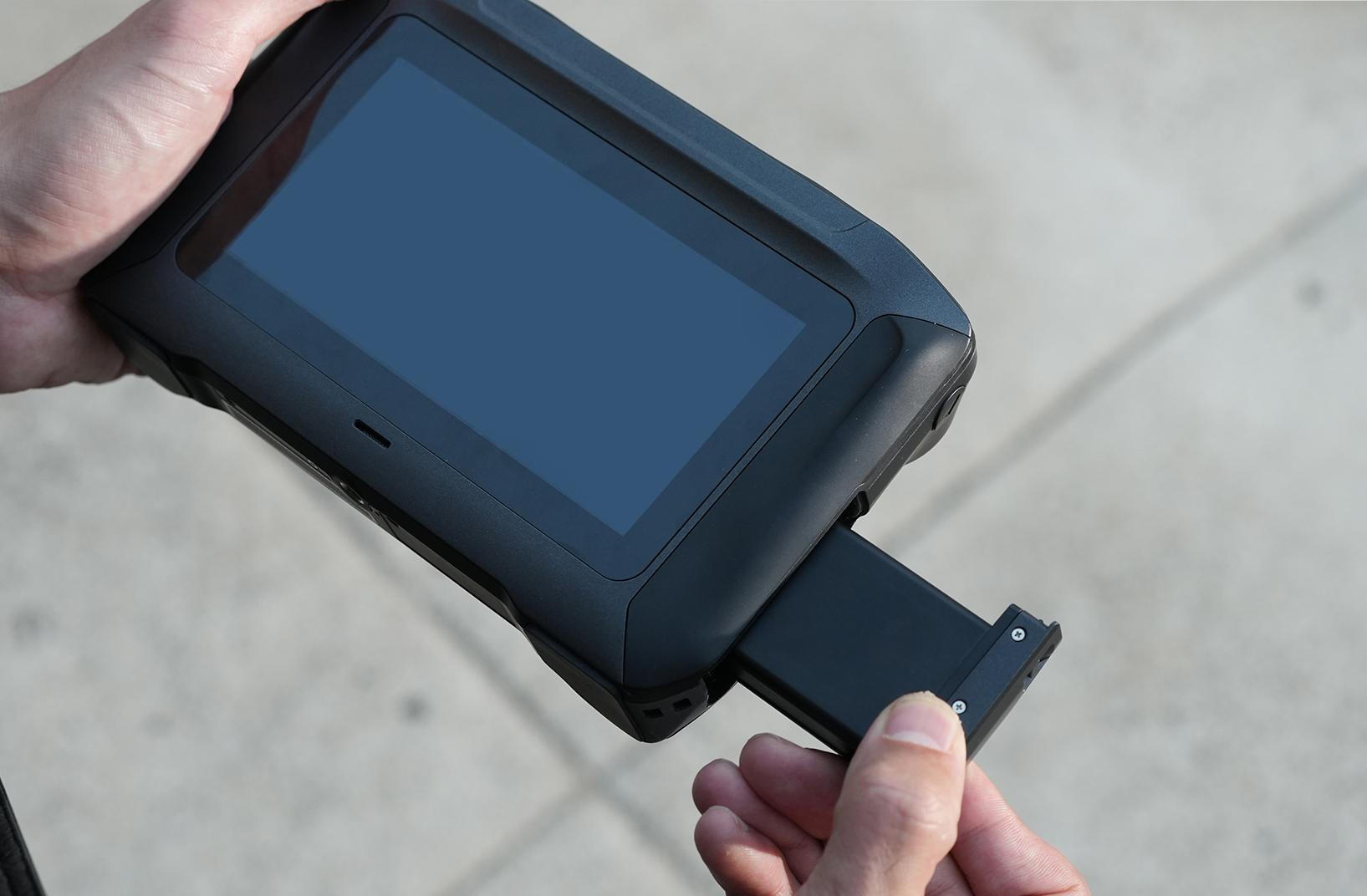

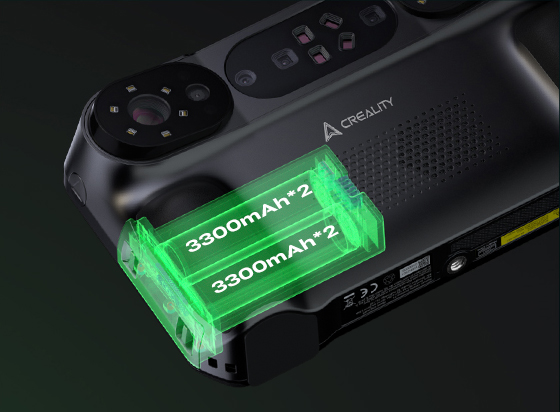

Swappable Dual-
Battery Design
Equipped with two swappable batteries (1 installed, 1
included separately). And comes with an extra battery
pack enables seamless, uninterrupted operation.

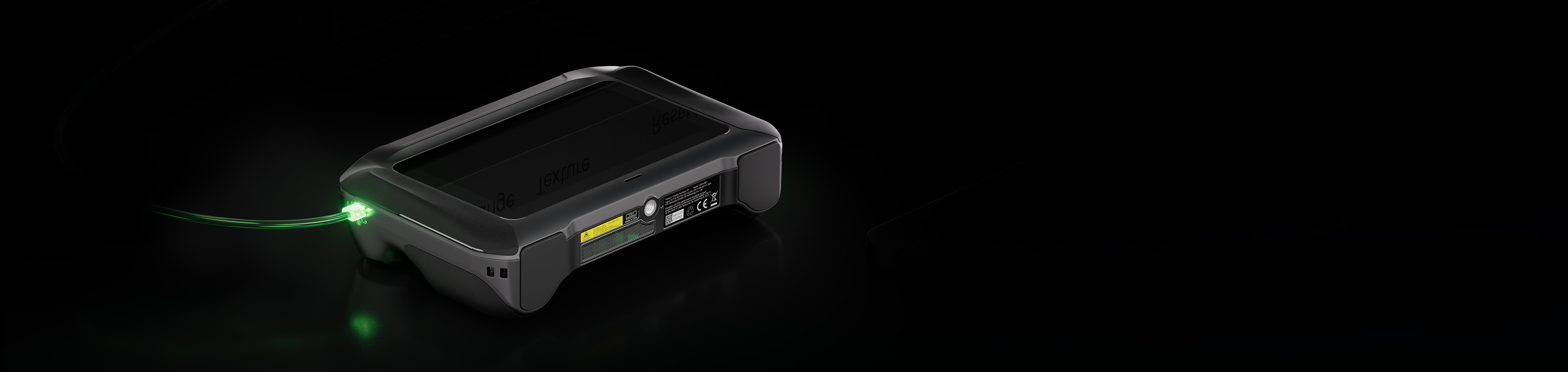

Power That
Keeps You GoingA smart power-saving system automatically enters
sleep mode to extend battery life.

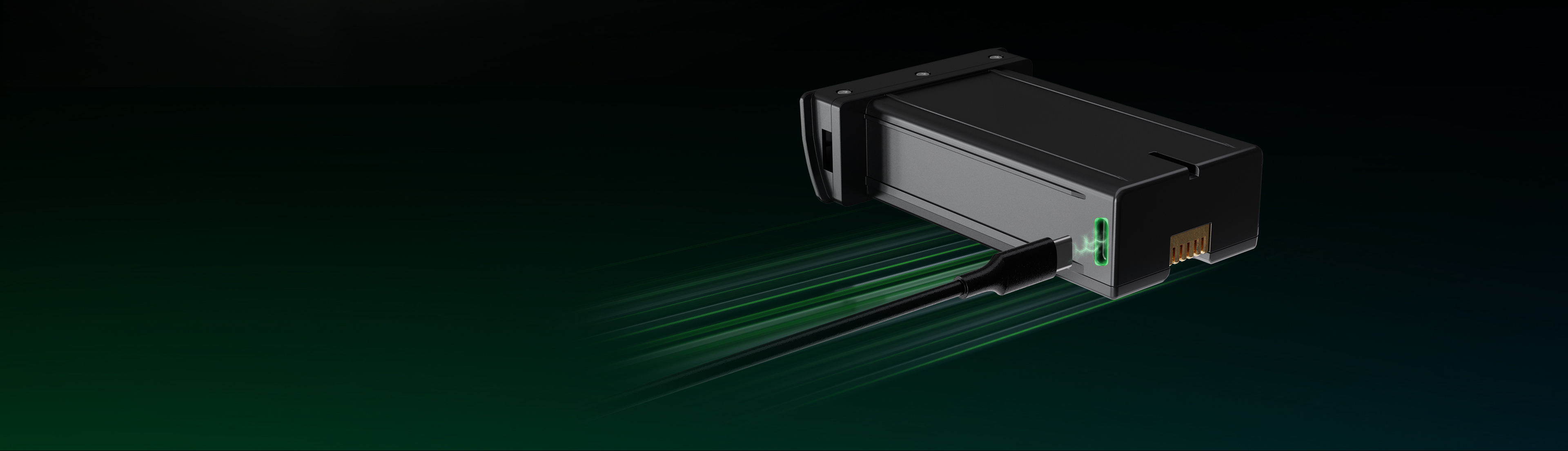

Fast Charging

Charges to 80% in just 50 minutes, making
outdoor scanning more convenient and
worry-free. Each battery features a Type-C
charging port for independent charging.

Efficient Scanning at Large FOVA larger single-frame FOV reduces marker requirements while improving tracking stability and scanning efficiency.
Blue Laser Max:380 × 365 mm @ 550 mm
Infrared Max:1245 × 754 mm @ 1000 mm (1-minute full-body scan)

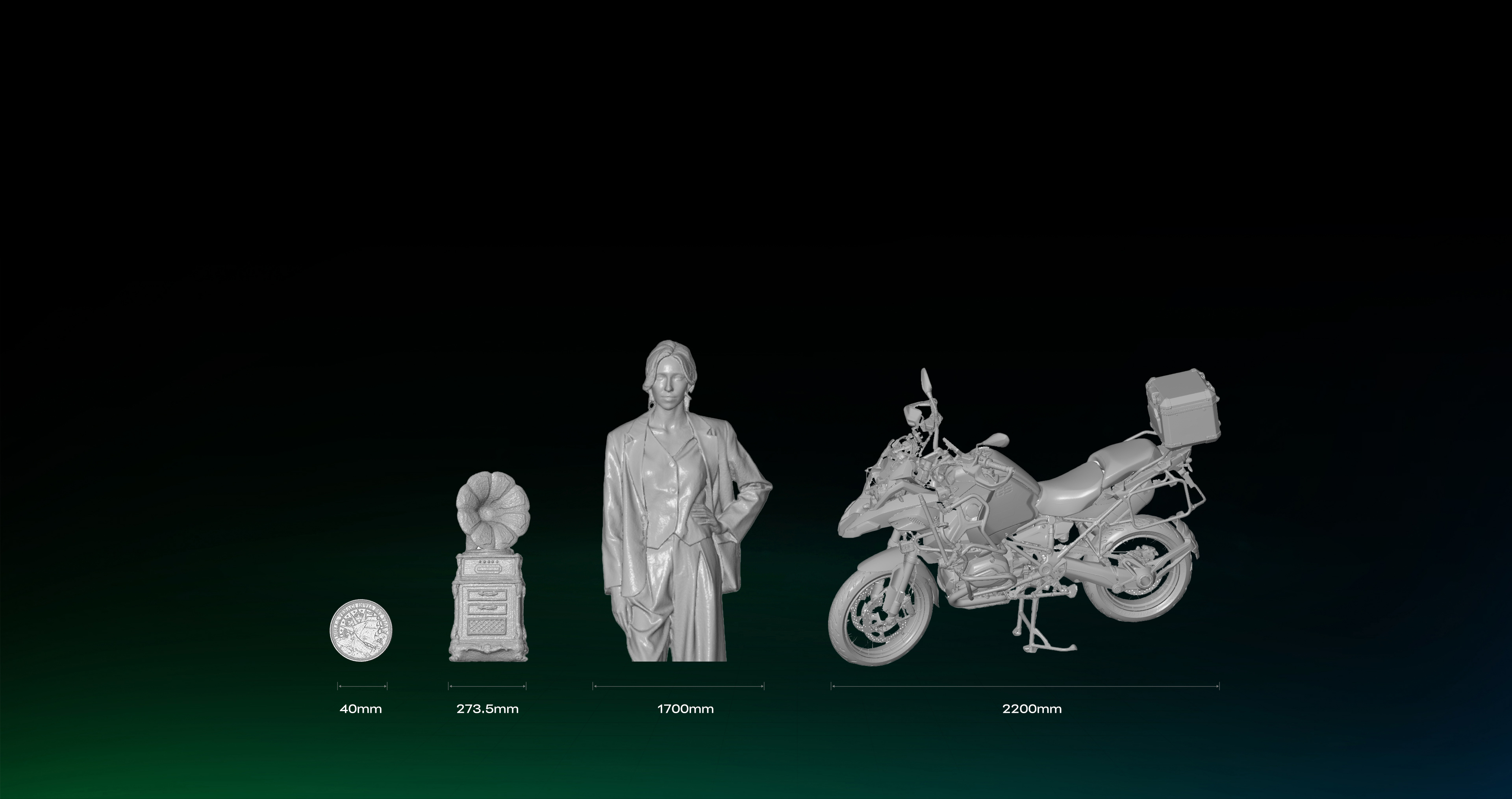

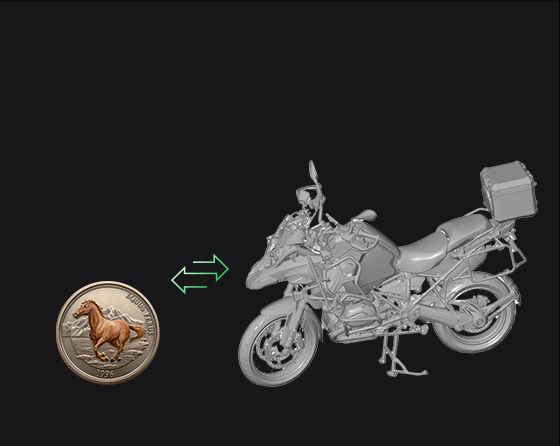

Wide Scanning Range, All-in-One Efficiency
By combining blue laser lines and NIR structured light, the Sermoon P1 supports a wide scanning range — from 5*5*5 mm³ up to 4000*4000*4000 mm³.
Blue Laser ScanningMinimum Scan Size: 5*5*5 mm³
Maximum Scan Size: 4000*4000*4000 mm³
NIR Structured Light ScanningIdeal for medium to large objects,Scanning objects
ranging from 150*150*150mm³ to 2000*200*2000mm³

Superior Material & Environmental Adaptability
Both blue laser and NIR structured light
offers strong environmental resistance and
multi-material adaptability, delivering reli-
able performance even outdoors.Efficient Operation in SunlightSingle/22 Cross Lines:​ ≤100k lux
7 Parallel Lines:​ ≤50k lux

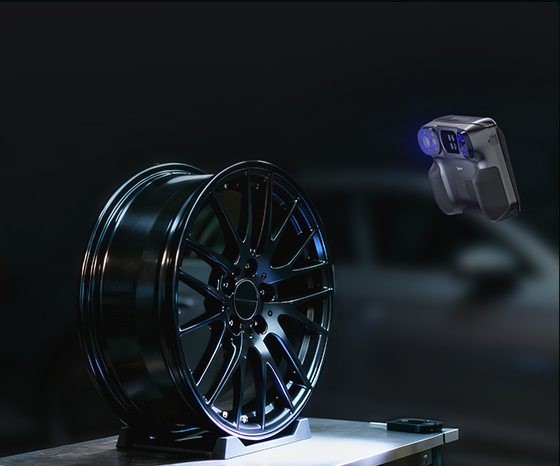

Scan Black/Metal Objects Without Sprays

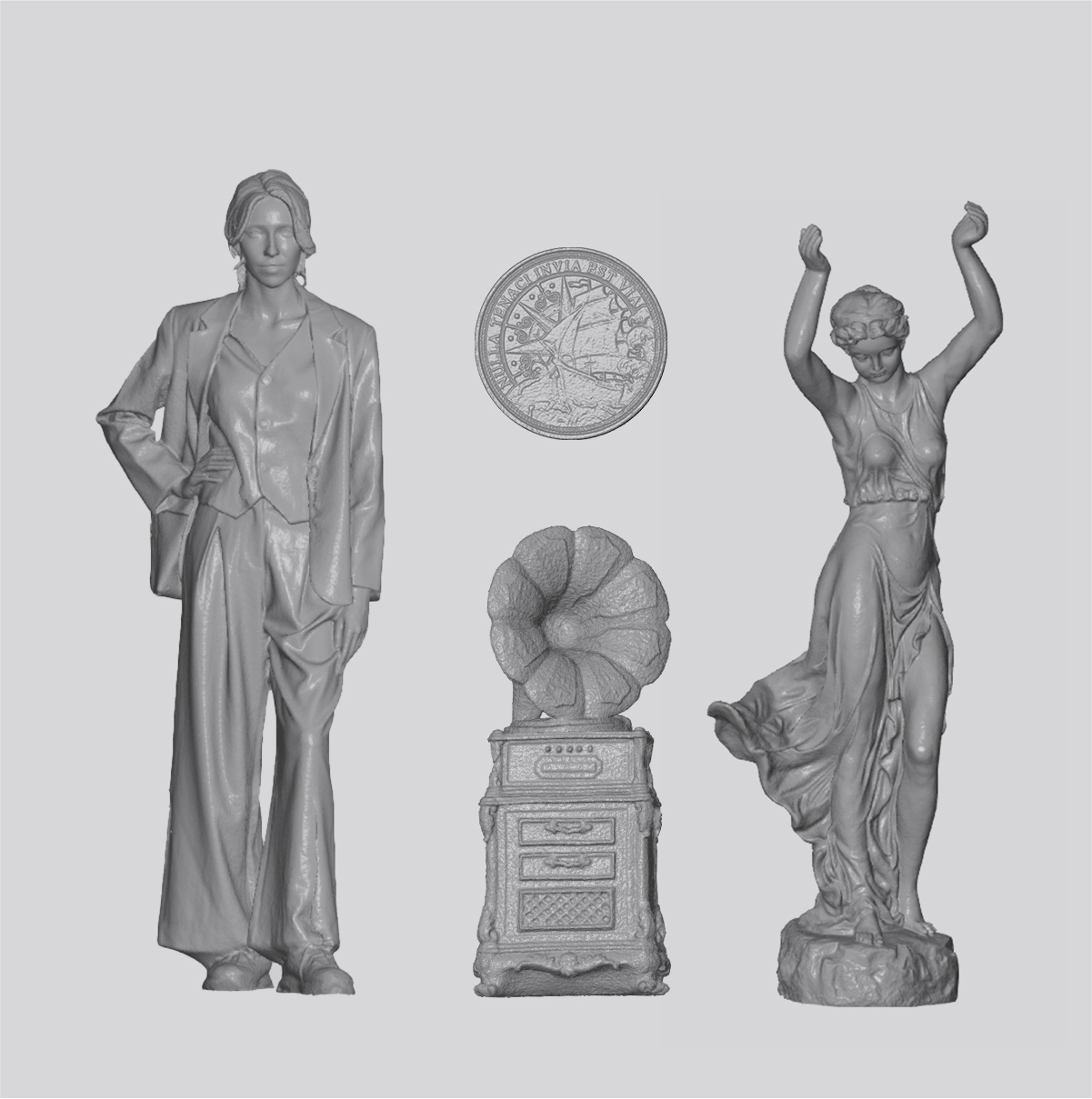

Full Color Texture ScanningEquipped with a high-performance Qualcomm ISP chip and a full-color RGB camera with global shutter,
enhanced by auxiliary lighting, the P1 delivers richer, more realistic textures.

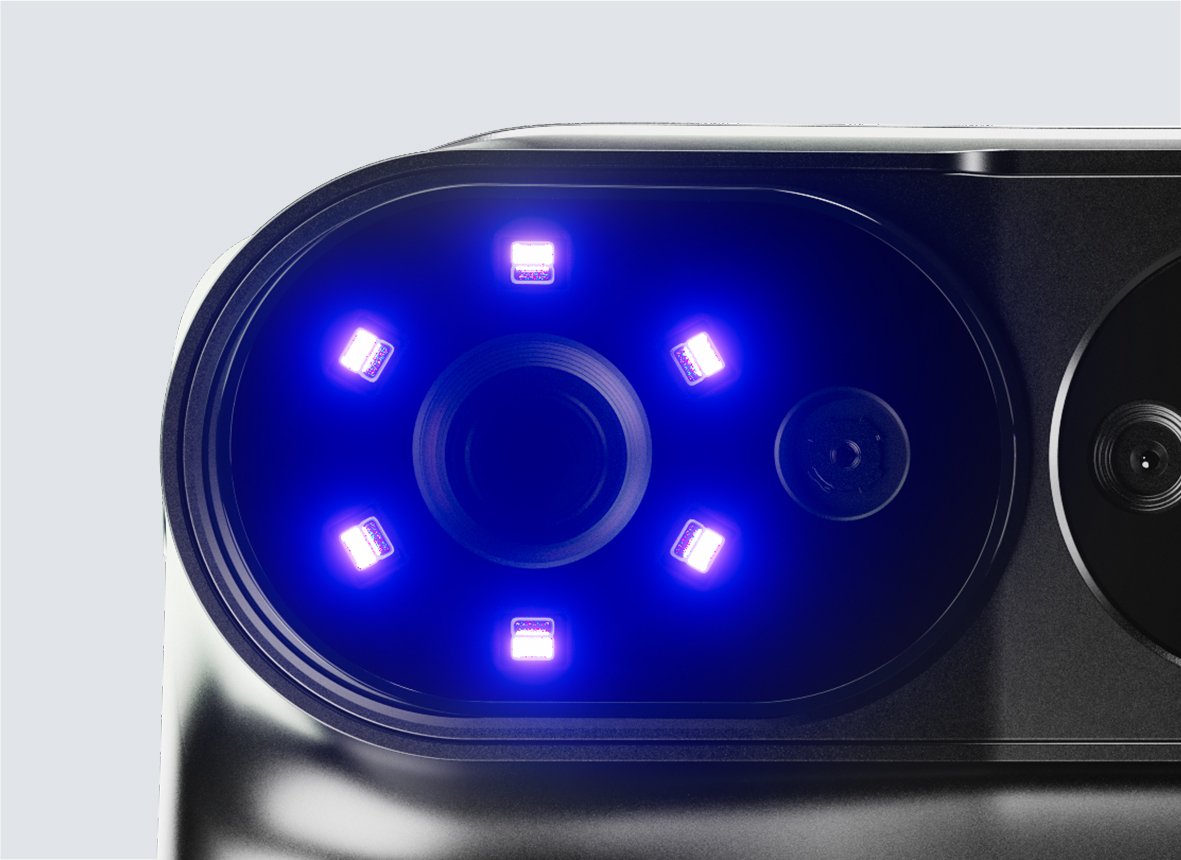

12 Dual-color LED Fill LightsBlue light is used for blue laser scanning.
White light enhances color texture brightness.

Qualcomm ISP Color MappingAdvanced color mapping algorithms ensure accurate and vivid
color reproduction.
AI Temperature Compensation – Driven StabilizationAn AI-based temperature compensation algorithm works with efficient thermal design to ensure stable
output and consistent scanning during extended use.

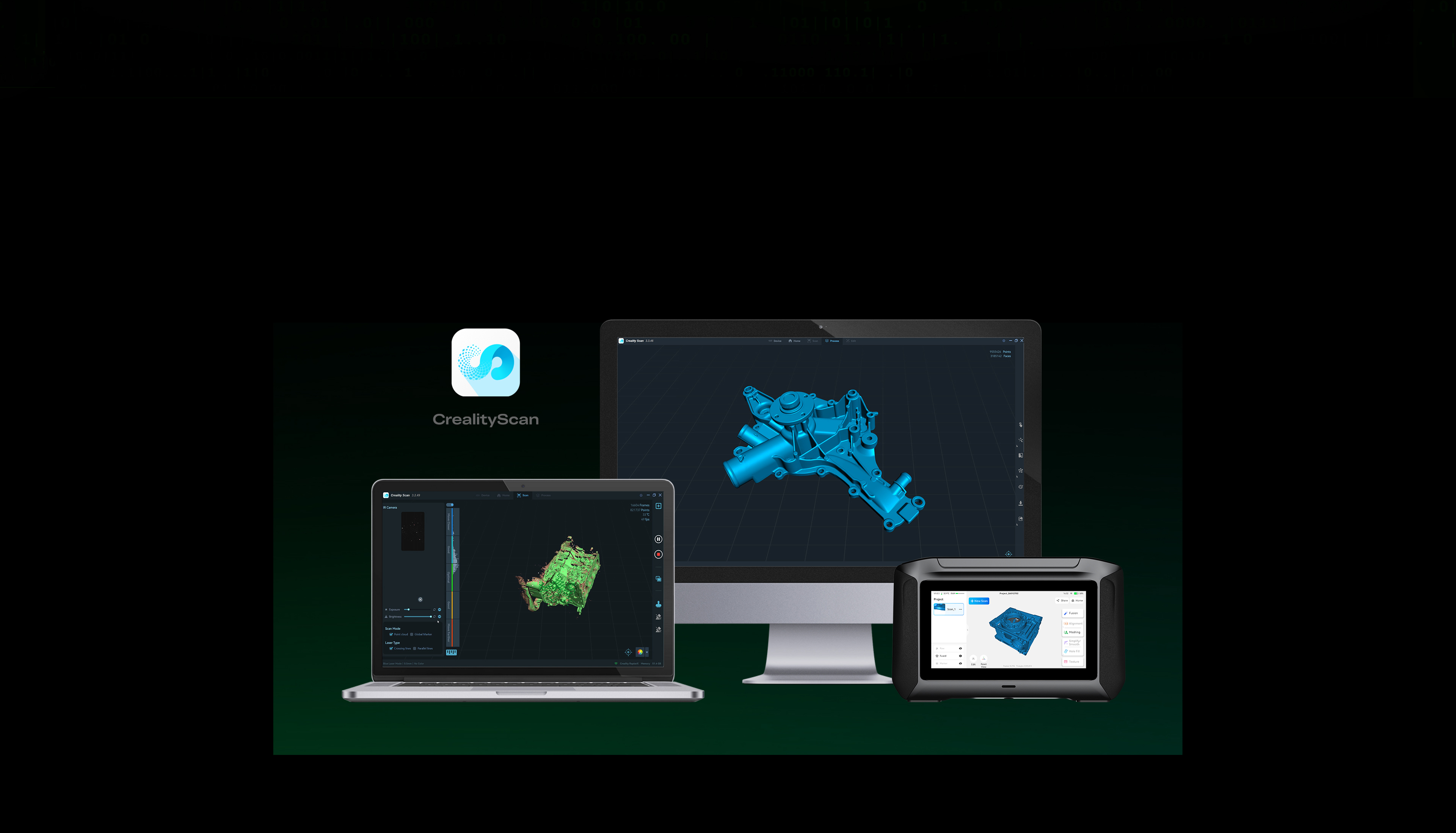

Powerful and User-Friendly Onboard Software
An all-in-one onboard software integrates Calibration, Scanning, Point-cloud Fusion, Mesh
Editing, Mulit-scan Merging, enbling complete model processing directly on the device.

Intuitive Interaction

A clean, visual interface guides
users from scanning to model
creation with ease.

Modular & Flexible
Design

One-Click OTA
Updates

Windows
macOS

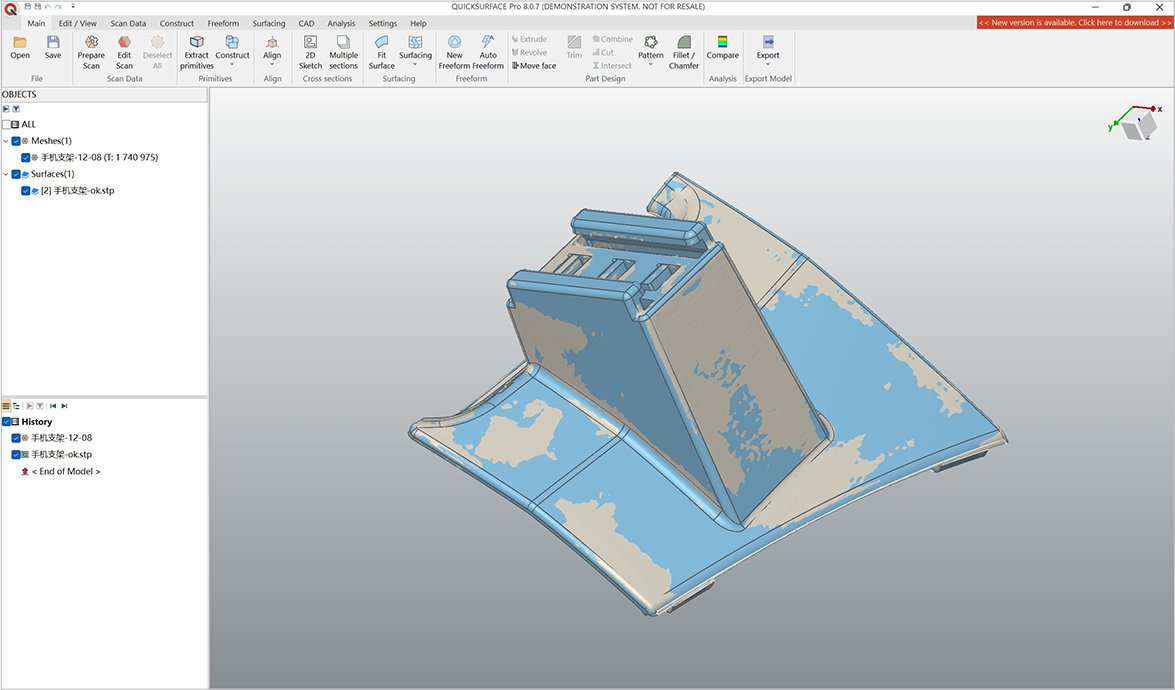

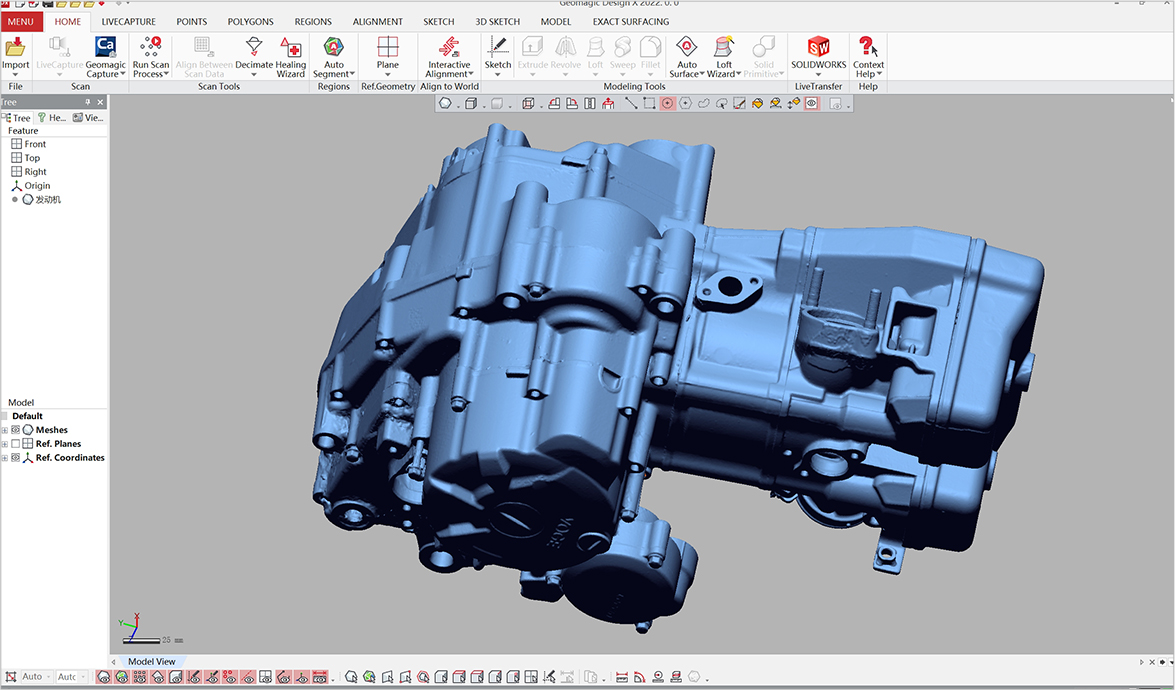

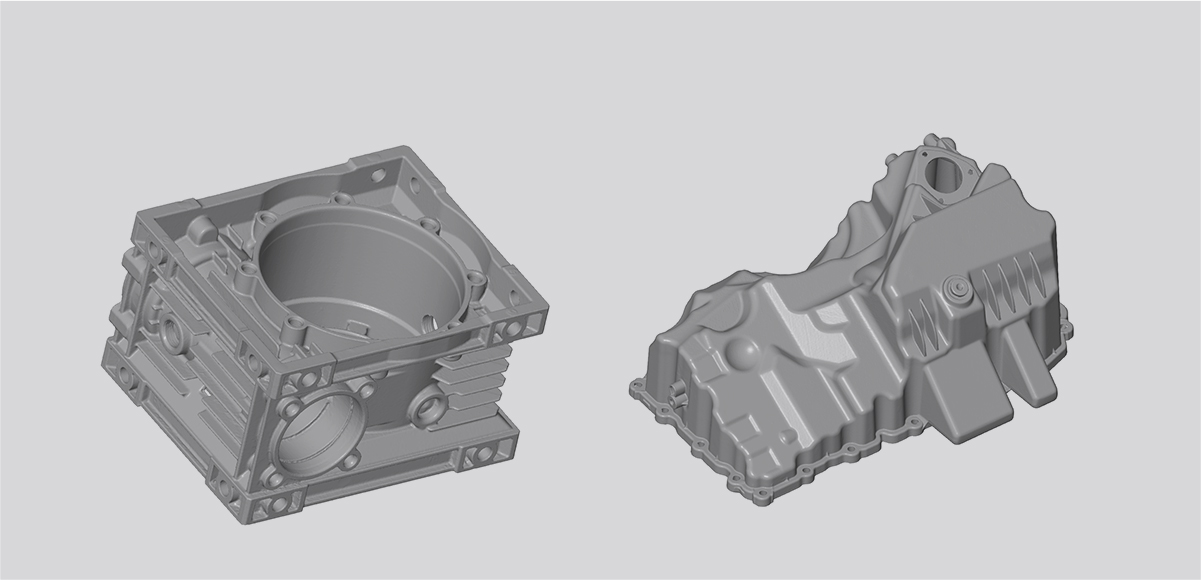

Seamless Compatibility with Inspection,
Design, and 3D Printing SoftwareScan data can be easily imported into mainstream reverse engi-neering, inspection, and design software such as QuickSurface and Geomagic Design X, streamlining workflows.

QuickSurface

Geomagic Design X

Industrial Design Driven by Performance

Quick-swap battery for field efficiency

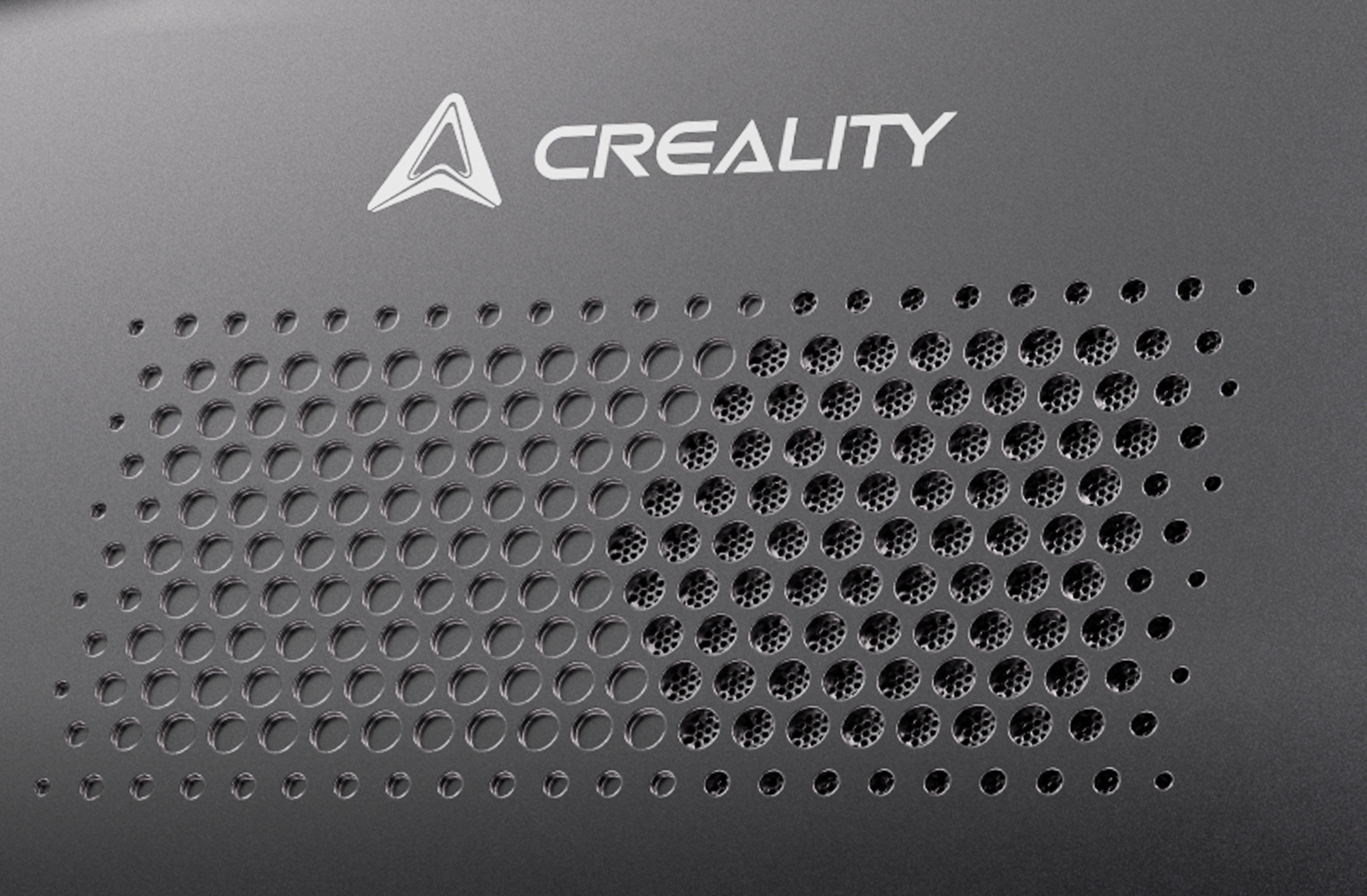

Optimized thermal structure for stable output

Comfortable grip for extended scanning sessions

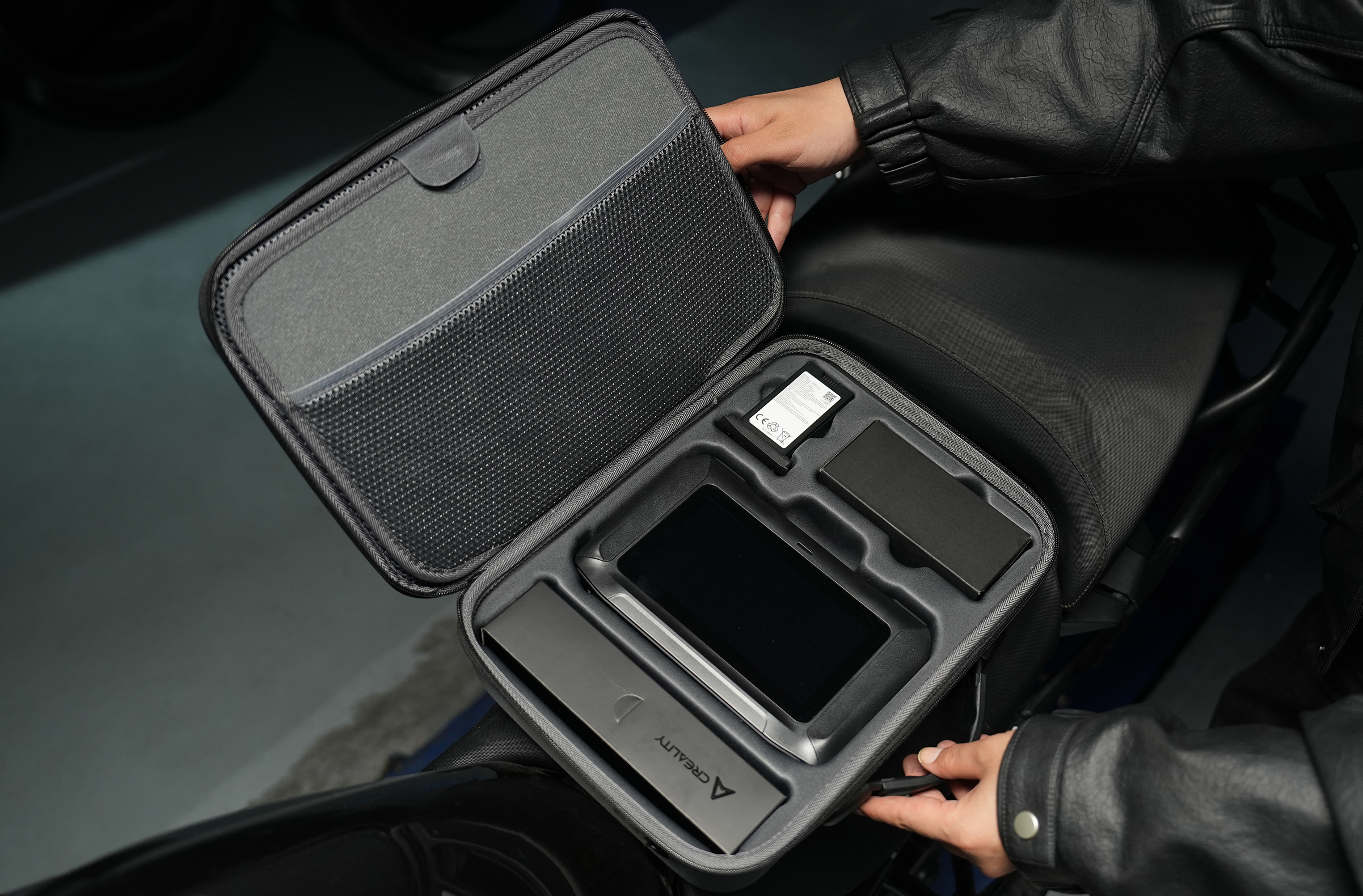

Compact & Ready to GoCompact, carry-on-sized protective case for easy transport.
Versatile case for storing 3D scanner, scale, and accessories securely.

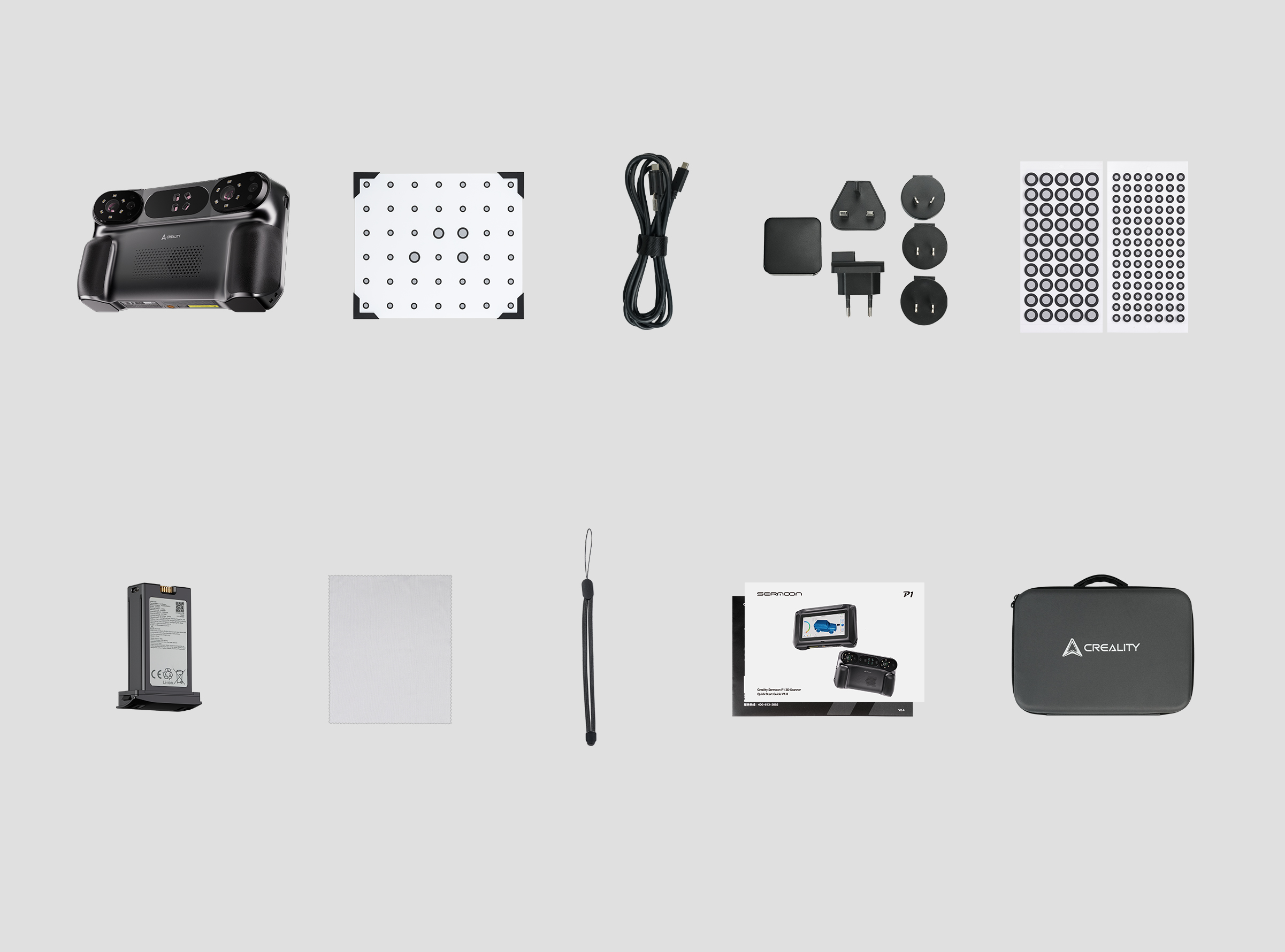

Packing List

Creality Sermoon P1
3D Scanner * 1High-Precision Glass
Calibration Board * 12m USB 3.0 Type-C
Data Cable * 1Power Adapter
+ Connectors* 1Reflective Markers
(D6mm * 10, D3mm * 10)
Backup Battery * 1Cleaning Cloth *1Lanyard *1Quick Start Guide &
Certificate of Conformity &
Warranty Card *Portable Case* 1

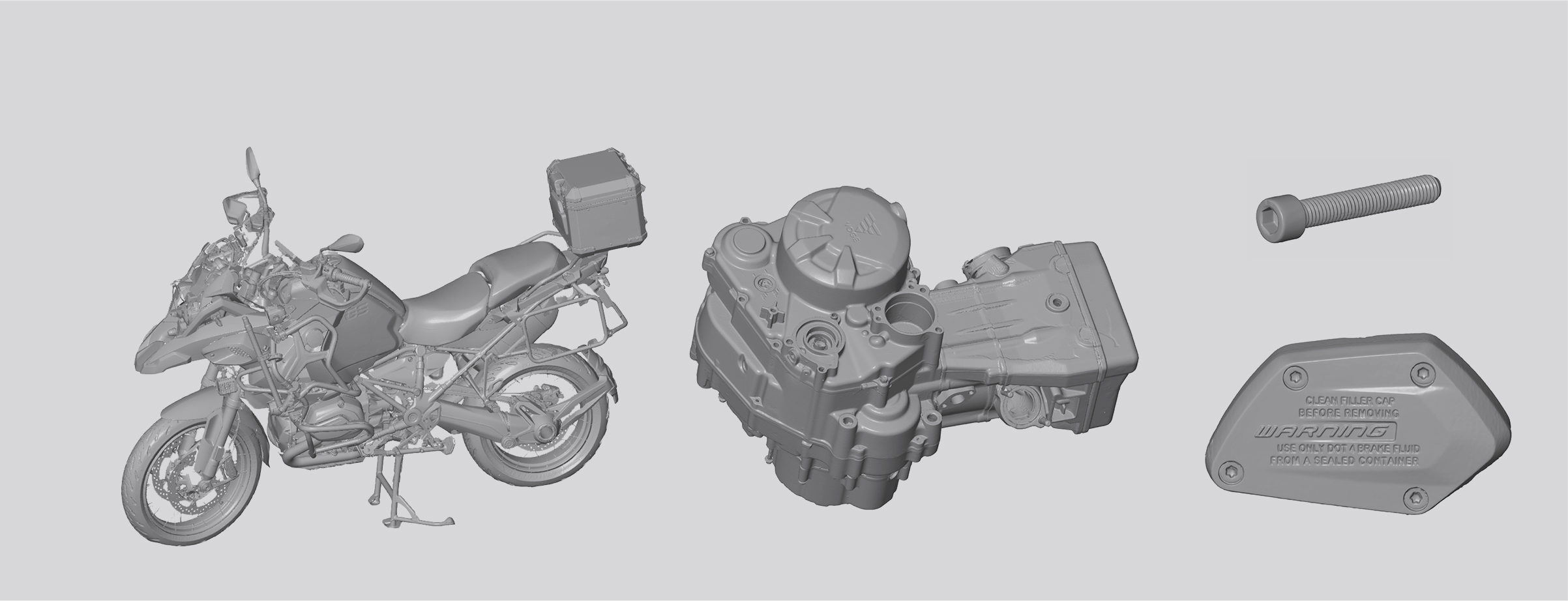

Applications

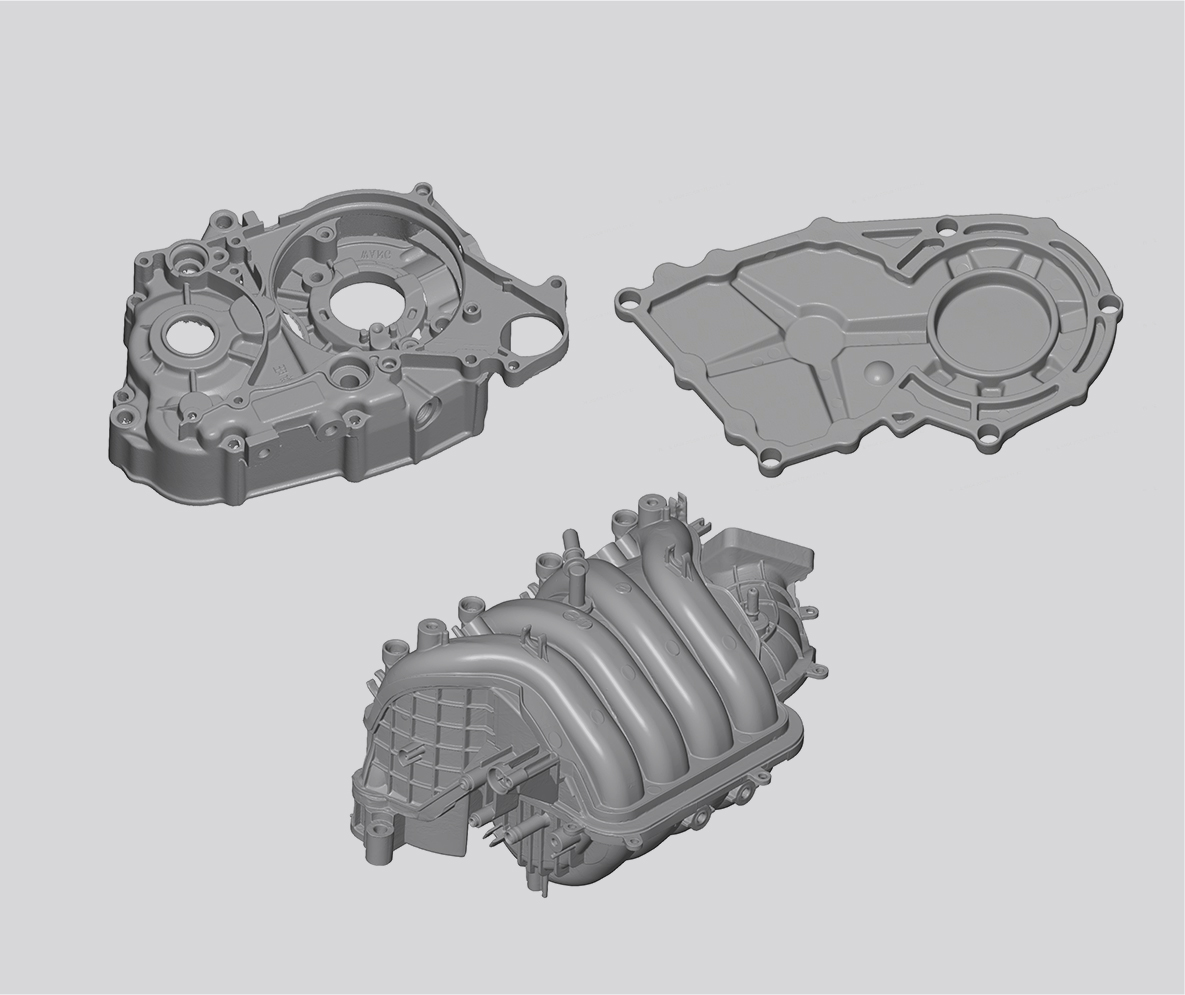

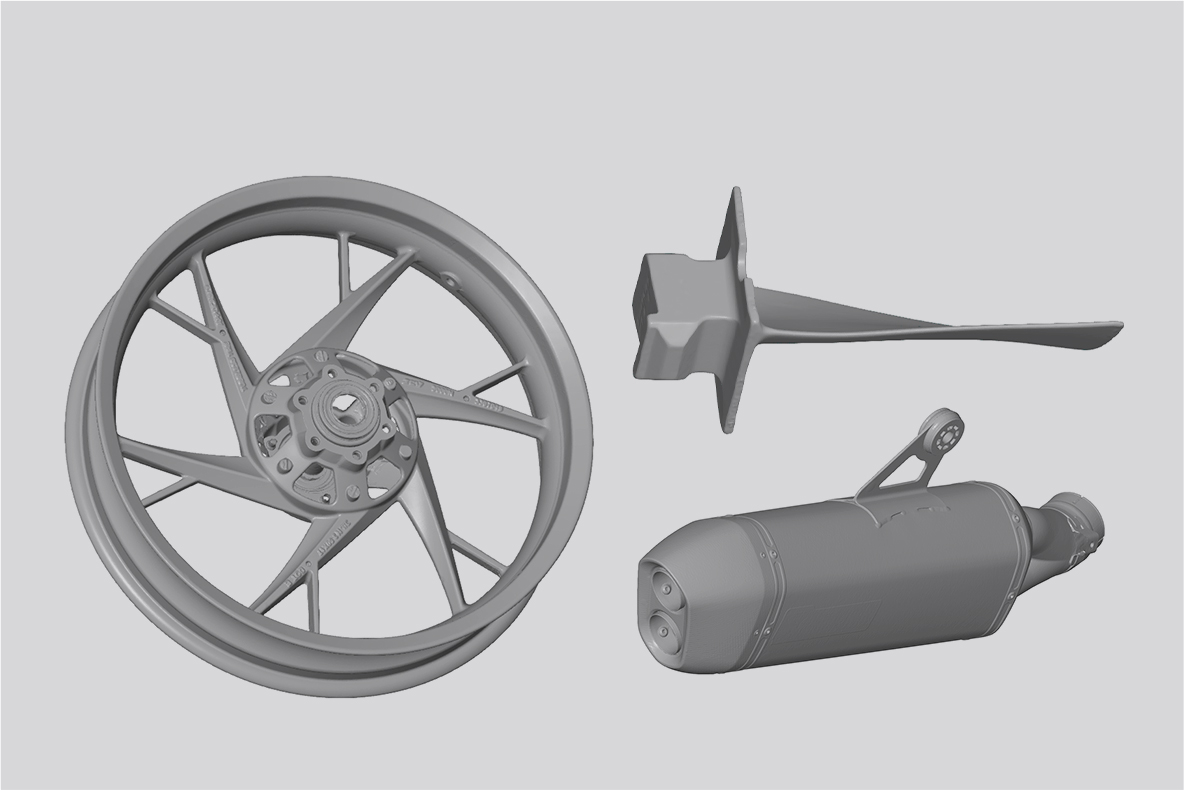

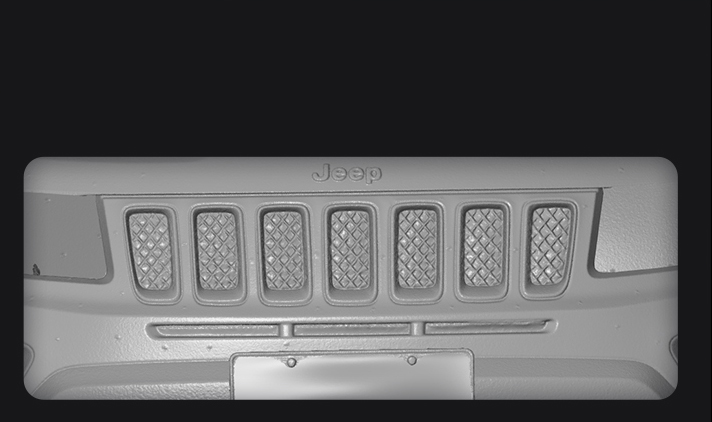

Automotive

Reverse Engineering

Inspection

Manufacturing

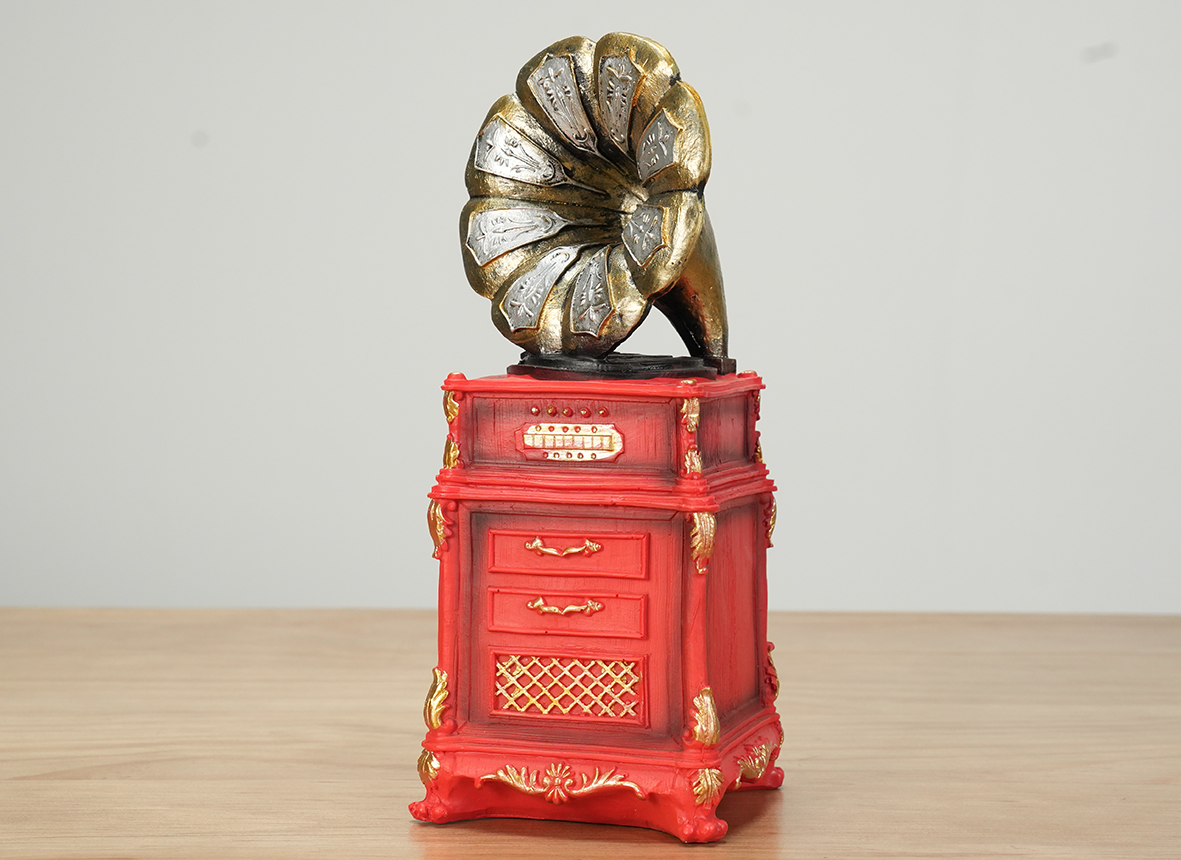

Art & Antique

Product Parameters

Scanning Mode	Single Blue Laser Line	7 Parallel Blue Laser Lines	22 Cross Blue Laser Lines	Close-Range Infrared Structured Light	Long-Range Infrared Structured Light
Accuracy	Up to 0.02mm[1]			Up to 0.075mm
Volumetric Accuracy	0.02mm+0.06mm/m			0.075mm+0.1mm/m
Scan Rate (Standalone Mode)	61,000 pts/s	430,000 pts/s	1,044,000 pts/s	3,440,000 pts/s
Scan Rate (PC Connected)	102,000 pts/s	716,000 pts/s	1,740,000 pts/s	6,881,000 pts/s
3D Resolution	0.05-2mm			0.1-2mm
Scanning Speed (Standalone)	Up to 60fps			Up to 15 FPS
Scanning Speed (PC Connected)	Up to 100 FPS			Up to 30 FPS
Min. Scan Volume	5mm × 5mm × 5mm			150mm × 150mm × 150mm
Single Capture Range	85mm*105mm @160mm 135mm*130mm @200mm 265mm*200mm @300mm 310mm*265mm @400mm 380mm*365mm @500mm			135mm*130mm @200mm 265mm*200mm @300mm 310mm*265mm @400mm	689mm×375mm @500mm 1245mm×754mm @900mm 1450mm*1020mm @1200mm
Working distance	200-550mm	160mm-400mm	200-550mm	170mm-400mm	200mm-1200mm
Color Mapping	Supported
Alignment mode	Marker / Global Marker			Marker / Global Marker / Geometry / Texture
Color Supplemental Light	12 White LEDs
Outdoor Scanning	Below 100,000 lux	Below 50,000 lux	Below 100,000 lux	Below 30,000 lux
Marker Recognition Enhancement	12 Blue LEDs
Laser Safety	Class II (eye safe)			Class I (eye safe)
Device Weight	830g
Size	209mm × 129mm × 53mm
Calibration board	High-precision glass calibration board
Processor	Qualcomm CPU, 8-core 3.36 GHz Adreno 740 GPU FPGA
Built-in RAM	24GB LPDDR5X
Built-in Storage	256GB UFS 4.0
Display	6-inch HD touchscreen
Battery Capacity	3300 mAh × 2 (Quick-swap, replaceable)
Charging	65W PD 3.0 fast charging
Wireless PC Scan	Supported
Operating Modes	Standalone Mode Wireless PC Mode Wired PC Mode
Wi-Fi	Wi-Fi 7
PC Software Support	Windows/macOS
Computer Configuration Requirements	Recommended Configuration: OS: Win10/11 (64-bit) CPU: Intel i7 13th Gen or above Dedicated Graphics Card: NVIDIA 4060 or higher (8GB VRAM) RAM: ≥64GB OS: macOS 14 or above CPU: Apple M3/M4 /M5 RAM: ≥32GB
Operating Temperature	-10°C to 40°C
Operating Humidity	10-90%RH
