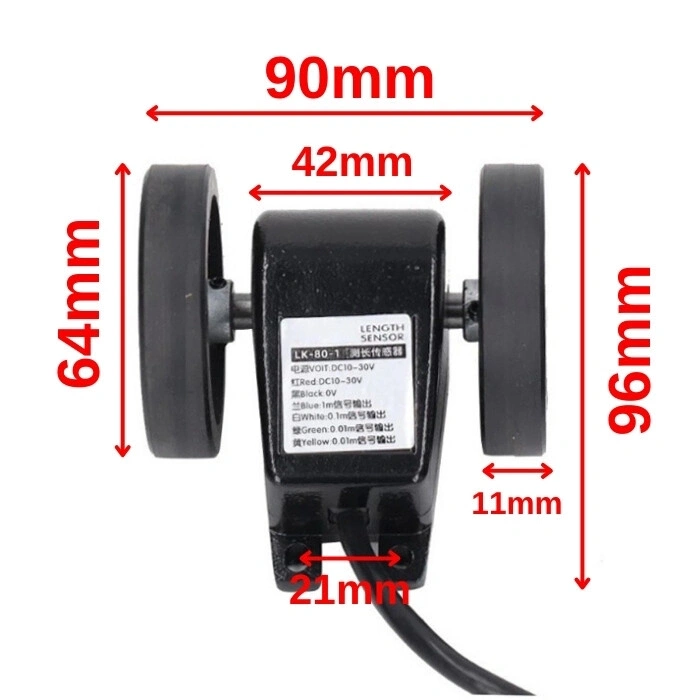

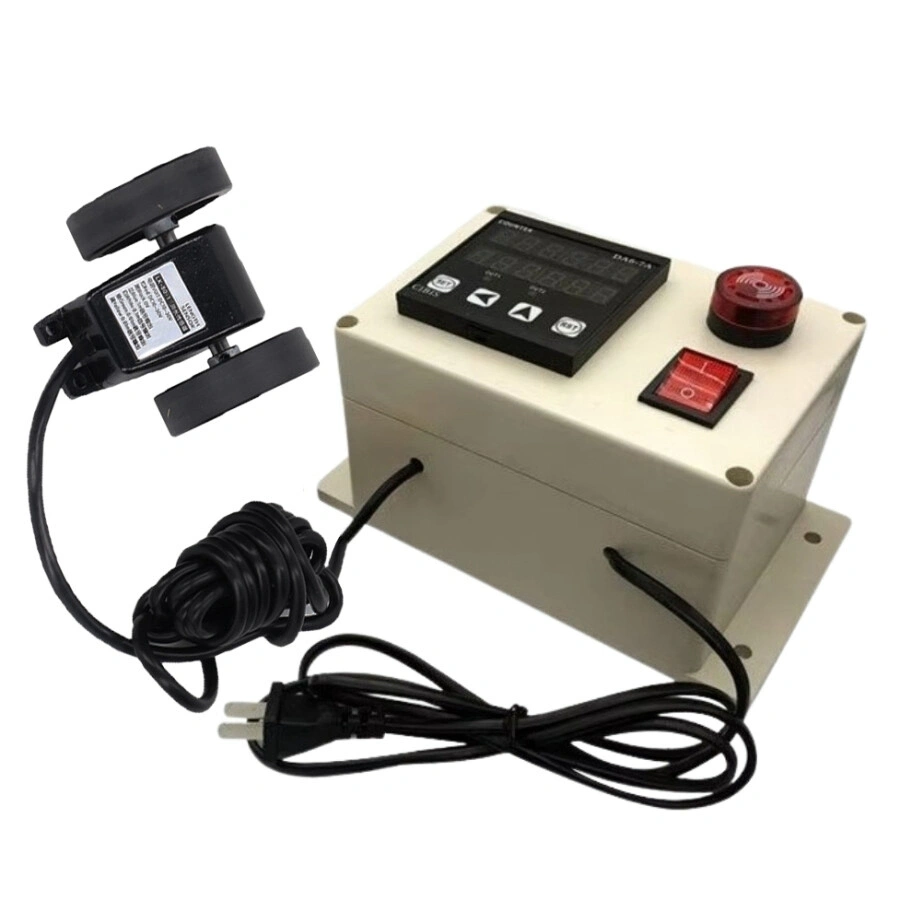

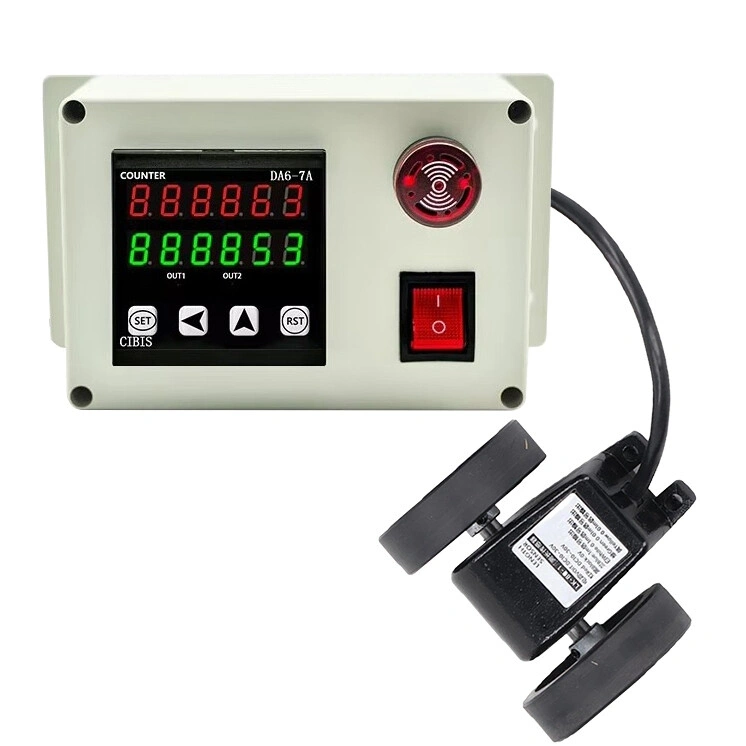

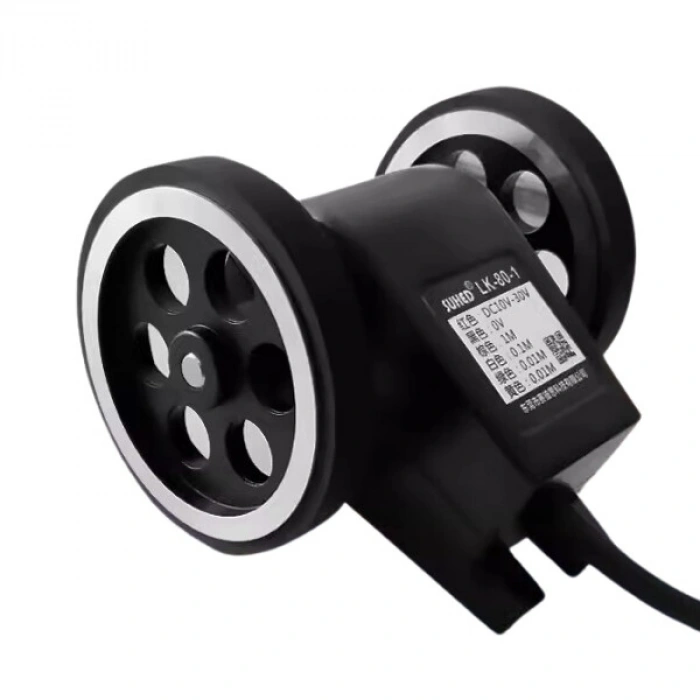

DA6-7A 6-Digit LK-80-1 Wheeled Mechanical Smart Length Counter

DA6-7A 6-Digit LK-80-1 Wheeled Mechanical Smart Length Counter is a mechanical counter designed for easier use with adjustable length values ​​and to stop at the required length thanks to its smart warning feature. It is generally used for fabric, yarn length; printing and artificial leather counting in textile. The unit of length is meter. A full turn of the wheel is counted as 1. The device is used as plug and play. It will start working when you plug it into the socket. There is also an on-off button on it.

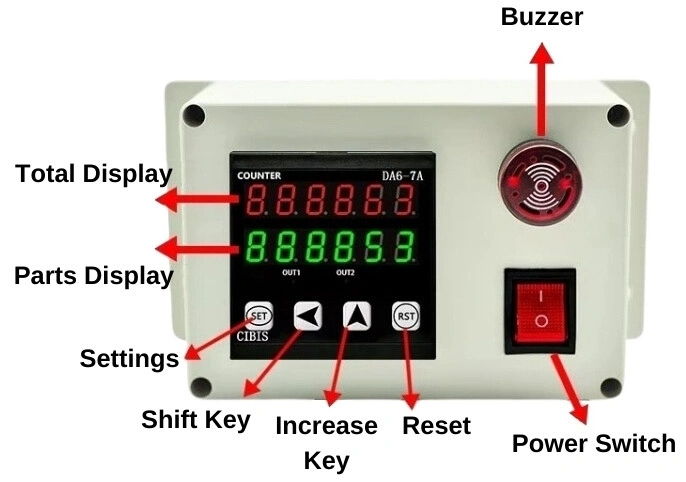

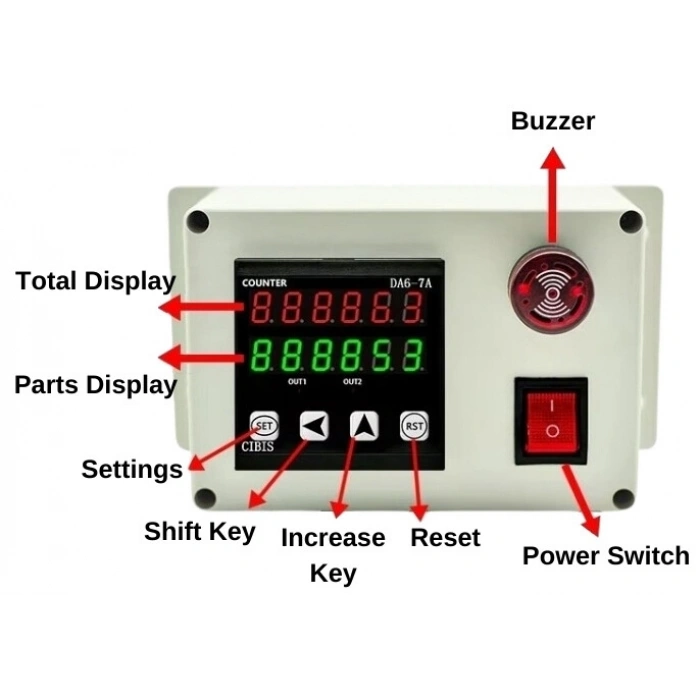

When you press the set button once, the device modes are opened. It is used to set the value at which the buzzer will give a one-time warning on the specified length in SP-1 mode.

When you press the set button again, it switches to SP-2 mode. This mode is where the length value at which the measurement will end is entered. When the measurement ends, the buzzer beeps continuously and no more length is counted.

When you press the set button again after SP-2 mode, the settings will be saved and the product will be ready for counting.

While in modes, the left arrow key allows switching between digits for orientation. The up arrow key changes the value of the selected digit.

If you press the reset button on it, the count will be reset.

Features

• Model: DA6-7A
• Counting Range: 0 - 999999

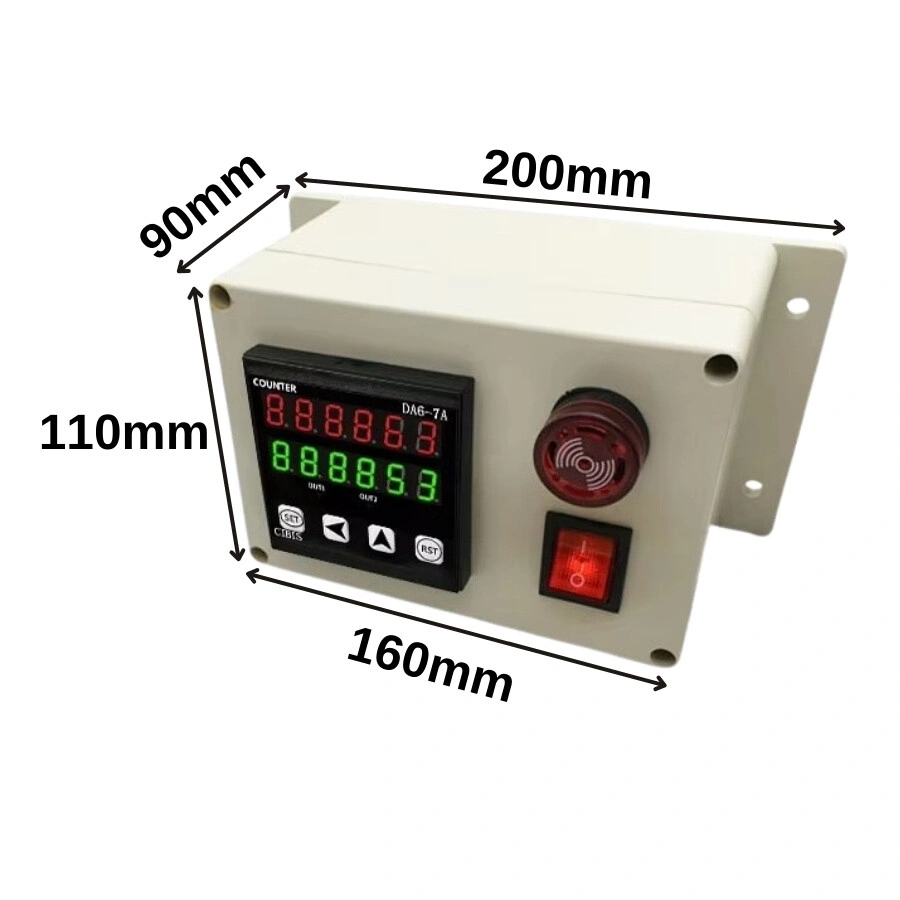

• Case Size: 160x110x90mm
• Distance Between Two Wheels: 68.5mm
• Mounting Hole Diameter: 6.5mm
• Distance Between Mounting Holes: 180x60mm
